Product Details:
|
| Principle: | Laser Scattering Principle | Measurement Range Of Particulate Matter: | 0.3～1.0μm; 1.0～2.5μm; 2.5～10μm; >10um |
|---|---|---|---|
| Particulate Matter Counting Efficiency: | 50%@0.3μm 98%@≥0.5μm | Effective Ranges Of PM2.5 And PM10: | 0~1000μg/m3 |
| Maximum Range Of PM2.5 And PM10: | ≥5000μg/m3 | TSP Effective Range: | 0~2000μg/m3 |
| Highlight: | 50% Laser Particulate Matter Sensor,0.3μm Laser Particulate Matter Sensor,0-1000μg/m3 Laser Particulate Matter Sensor |
||

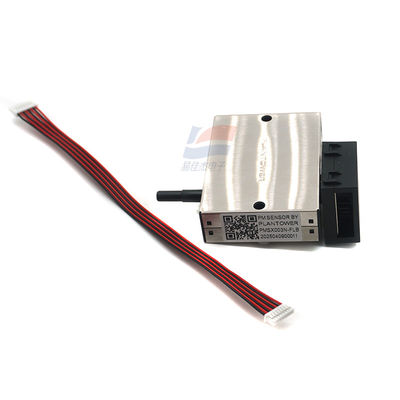

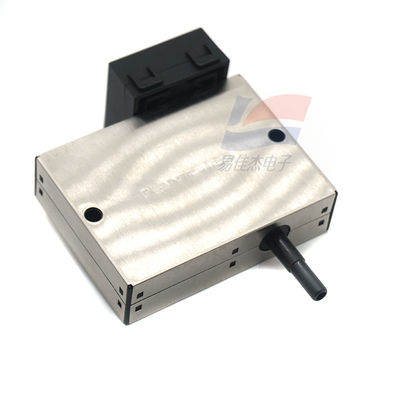

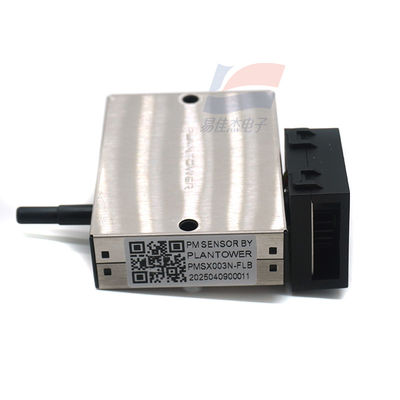

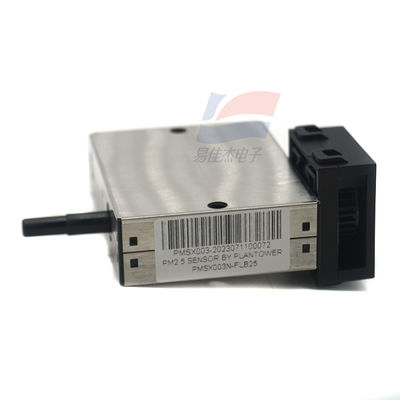

PMSX003-N PMSX003 Laser particulate matter sensor
➢ Main features:
The principle of laser scattering enables precise measurement
Zero error alarm rate
Real-time response and support continuous collection
The minimum resolution particle size is 0.3µm
Dual air duct selection for fan and air pump, with selectable flow rate
The dual laser design enhances the detection of large particles and can output TSP data
It can be applied outdoors and has a wide temperature range
| Accurate volume | 0.1L |
| Single response time | <2 seconds |
| Comprehensive response time | ≤10 seconds |
| Dc power supply voltage | Typ: 5.0V, Min:4.5V, Max:5.5V |
| Working current | ≤300mA |
| Standby current | ≤6mA |
| Operating temperature range | -30 to +70℃ |
| Working humidity range | 0-95% (no condensation) |
