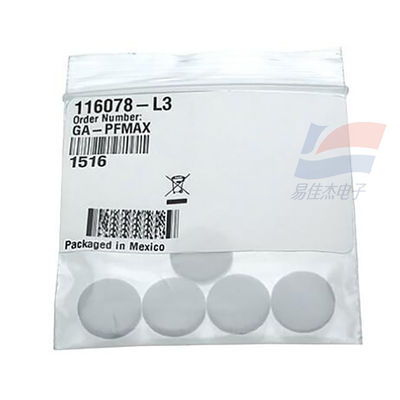

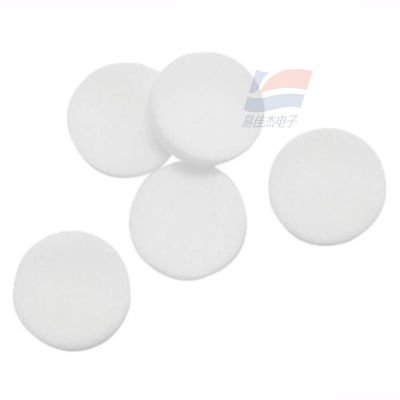

YJJ XT-RF-H5 GA-PFMAX Filter Is Used In The BW GasAlert MAX XTII Pump Suction Four-in-one Gas Monitor

Product Description:

XT-RF-H5 Filter Is Used In The BW GasAlert MAX XTII Pump Suction Four-in-one Gas Monitor

Features:

XT-RF-H5 filter is used in the BW GasAlert MAX XTII pump suction four-in-one gas monitor

The GasAlertMax XT II is capable of reliably monitoring up to four hazardous gases.

At the same time, it combines an intuitive single-button interface operation with a robust and durable electric pump

Combined, it can perform intelligent and remote sampling, which is highly suitable for confined Spaces

In the meantime. GasAlertMax XT II and MicroDock II are automatically tested and calibrated

The system is fully compatible.

Standard features of BW products:

The LCD screen continuously and in real time shows the gas concentration

The design is small and lightweight, and comfortable to wear

IP67 waterproof rating

Simple automatic calibration program; Compatible with the BW MicroDockII automatic test and calibration station

When starting up, it conducts a full-function self-check on sensors, battery status, line integrity, and audible, visual and vibration alarms

A bright wide-angle visual alarm light column

It has a built-in shock-absorbing outer cover

Data recording/Event recording

Other functions of GasAlertMax XT II:

The integrated sampling pump adopts reliable diaphragm technology

The industry's best blockage detection with semiconductor pressure sensors

Multi-language support, including English, French, German, Spanish and Portuguese

Fleet Manager II enables you to manage the detector conveniently

GasAlertMax XT II specification

Dimensions: 5.1 x 2.8 x 2.0 inches / 13.1 x 7.0 x 5.2 centimeters

Weight: 11.5 ounces / 328 grams

Temperature: -4 to 122 ° C / -20 to 50 ° C

Humidity: 10% to -100% relative humidity (non-condensing)

Alarm: - Visual, vibration, sound (95dB)

Low limit, high limit, STEL, TWA, OL (beyond limit), insufficient power, pump

Test: The audio-visual alarm is activated when the detector starts up. The alarm is issued continuously when the sensor malfunctions, the battery power is insufficient, or the pump and circuit malfunction

The standard service life of the battery: 13 hours at 32 ° F / 0 ° C

At -4 ° C / -20 ° C, for 8 hours

It can be fully charged in 6 hours

Pump suction: Samples can be extracted up to 75 feet / 23 meters away

User Options: Trust Buzzer Sound Safety (sensor) Lock Lock Alarm Safety Display Mode Calibration Infrared Lock

When the position is selected, the forced adhesion test expires, the forced impact test expires, and the forced calibration expires

Sensor configuration detector identification Low limit alarm confirmation language options (five types)

Set the custom startup message prompt interval and data recording interval

Grade: EMI/RFI: Complies with EMC Specification 2004/108/EC

Invasive protection: IP66/67

Certification and Licensing: CSA Class I, Div.1, Gr.A, B, C, D

IECEx: Ga Ex ia IIC T4

ATEX: CE II 1 G Ga Ex ia IIC T4

Br Ex ia IIC T4

Guarantee: 2-year warranty (including all sensors)

Sensor specification

Gas measurement range resolution

H2S 0-200 ppm 1 ppm

CO 0-1000 ppm 1 ppm

O2 0-30.0% 0.1%

Flammable gas: 0-100% LEL, 1%

0-5.0% v/v 0.1%

Users can adjust the alarm set points of all sensors. During the instrument startup process, Settings

The points will be displayed automatically.

Specifications:
