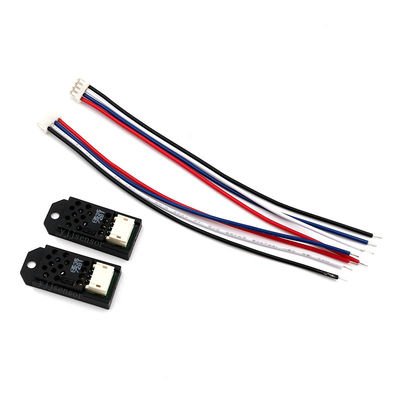

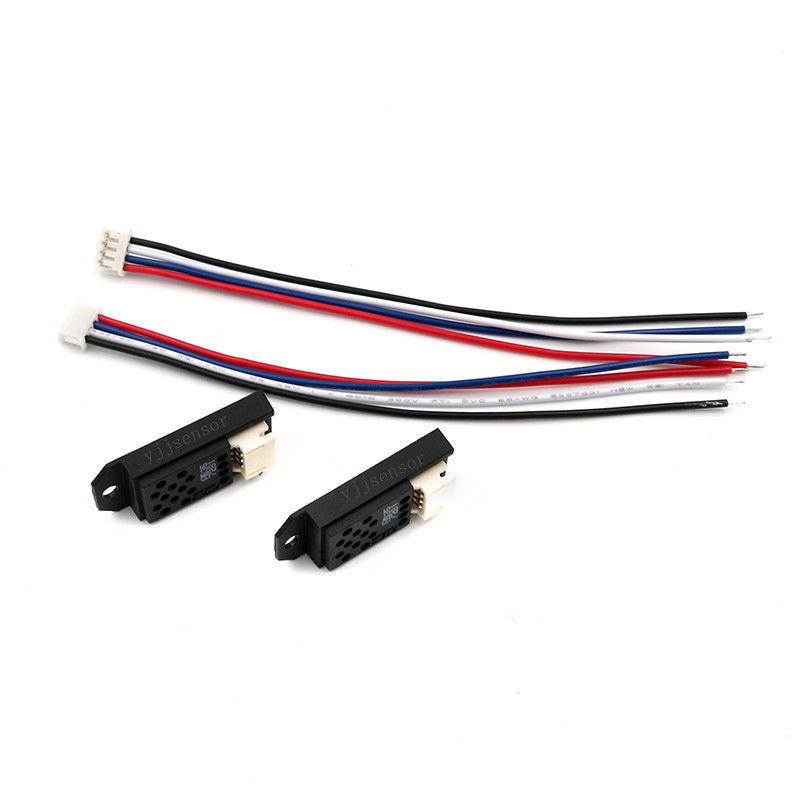

HTG3515CH Temperature and Humidity Sensor for Precise Measurements

                                            HTG3515CH Voltage Output Temperature and Humidity Sensor

HTG3515CH Voltage Output Temperature and Humidity Sensor DESCRIPTION
Based on the rugged HUMIREL humidity sensor, HTG3515CH is a dedicated humidity and temperature plug and play transducer designed for OEM applications where a reliable and accurate measurement is needed. Direct interface with a micro-controller is made possible with the module’s humidity linear voltage and direct NTC outputs. HTG3515CH is designed for high volume and demanding applications.

HTG3515CH Voltage Output Temperature and Humidity Sensor FEATURES
• Voltage Supply: 5 Vdc
• Nominal Output @55%RH: 2.401~2.559 V
• Humidity Average Sensitivity: +26 mV/%RH
• Current consumption: 1.2 mA dc
• Humidity Measuring Range: 0~100 %RH
• Humidity Operating Range: 0~100%RH
• Temperature Operating Range: -40 ~110°C
• Suitable for small bulk assembly
• Product free from Lead, Cr (6+), Cd and Hg. Compliant with RoHS
• Full interchangeability. Better than +/-3%RH and +/-0.25°C
• Humidity calibrated within +/- 3% RH @ 55% RH
• Temperature measurement through NTC direct output
• Demonstrated reliability and long term stability
• Reliability not affected by repeated condensations

HTG3515CH Voltage Output Temperature and Humidity Sensor APPLICATIONS
• Automotive
• Home Appliance
• Printers
