HTG3535CH Humidity and Temperature Sensor Module with 0-100%RH Operating Range

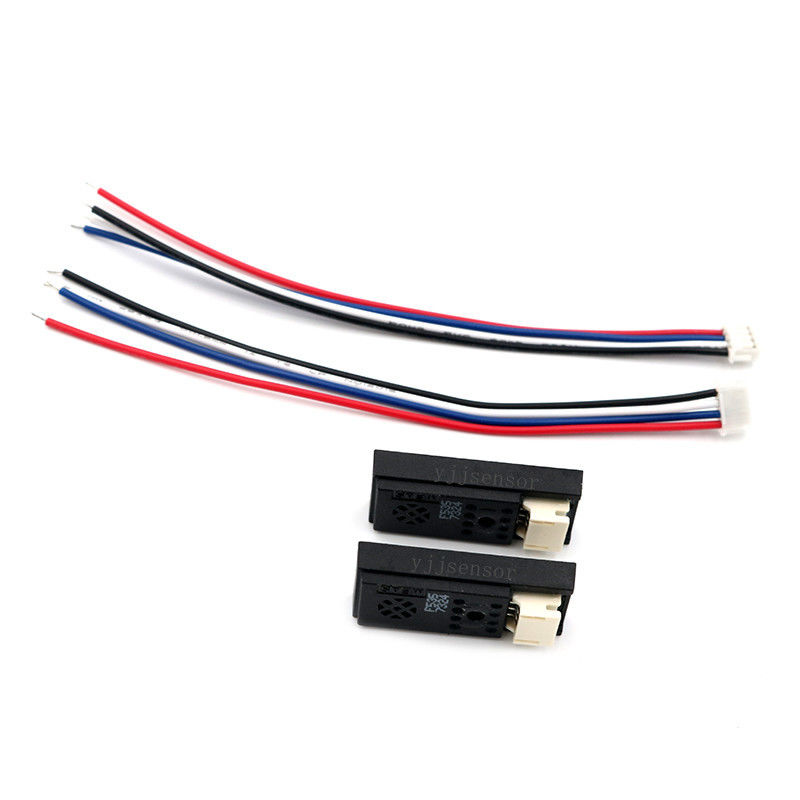

                                HTG3535CH Humidity and Temperature Sensor Module

HTG3535CH Humidity and Temperature Sensor Module DESCRIPTION
Based on the rugged HUMIREL humidity sensor, HTG3535CH is a dedicated humidity and temperature plug and play transducer designed for OEM applications where a reliable and accurate measurement is needed. Direct interface with a micro-controller is made possible with the module’s humidity linear voltage and direct NTC outputs. HTG3535CH is designed for high volume and demanding applications.

HTG3535CH Humidity and Temperature Sensor Module FEATURES
• Voltage Supply: 5 Vdc
• Nominal Output @55%RH: 2.401~2.559 V
• Humidity Average Sensitivity: +26 mV/%RH
• Current consumption: 1.2 mA dc
• Humidity Measuring Range: 0~100 %RH
• Humidity Operating Range: 0~100%RH
• Temperature Operating Range: -40 ~110°C
• Suitable for small bulk assembly
• Product free from Lead, Cr (6+), Cd and Hg. Compliant with RoHS
• Full interchangeability. Better than +/-3%RH and +/-0.25°C
• Humidity calibrated within +/- 3% RH @ 55% RH
• Temperature measurement through NTC direct output
• Demonstrated reliability and long term stability
• Reliability not affected by repeated condensations

HTG3535CH Humidity and Temperature Sensor Module APPLICATIONS
• Automotive
• Home Appliance
• Printers
