8413660 0–100 L/min Minute Ventilation Repetitive Exhalation Valve for Ventilator with Oxygen Concentration

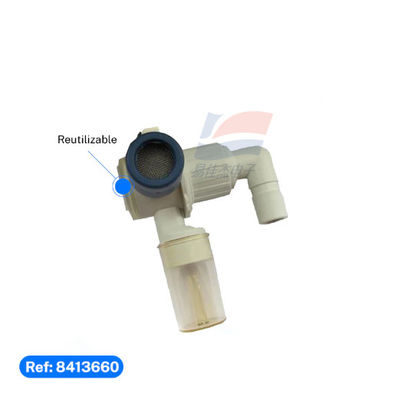

Large Image : 8413660 0–100 L/min Minute Ventilation Repetitive Exhalation Valve for Ventilator with Oxygen Concentration

Product Details:

Place of Origin:	Germany
Model Number:	8413660

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000pcs

Contact Now

8413660 0–100 L/min Minute Ventilation Repetitive Exhalation Valve for Ventilator with Oxygen Concentration

Description

Flow Acceleration:

5–200 Mbar/s

Oxygen Concentration:

21–100 Vol.%

Trigger Sensitivity:

1–15 L/min

Minute Ventilation:

0–100 L/min

Highlight:

100 L/min Exhalation Valve

8413660 Ventilator Exhalation Valve

Oxygen Concentration Exhalation Valve

8413660 Repetitive Exhalation Valve Of The Ventilator

Working Principle:

The expiratory valve controls the discharge of exhaled gas during ventilator operation, ensuring smooth exhalation while preventing external air from flowing back into the ventilator circuit. It maintains normal pressure and gas flow direction in the respiratory loop.

Material:

Made of medical-grade plastic or metal, featuring excellent biocompatibility, corrosion resistance, and durability to meet medical environment requirements.

Connection Method:

Designed with standard interfaces for connecting to ventilator breathing circuits and the main unit, ensuring tight and airtight connections. Common methods include threaded or snap-fit connections.

Performance Characteristics:

Sealability: Effectively prevents gas backflow during exhalation.
Expiratory Resistance: Moderate resistance to avoid hindering patient exhalation, while maintaining pressure stability in the respiratory loop in conjunction with the ventilator's overall performance.
Flow Adaptability: Adjusts to different exhalation flows of patients.

Parameter Category	Specific Parameters
Ventilation Modes	IPPV (CMV), IPPV assist (A/C), SIMV, SIMV ASB, CPAP ASB, BIPAP (PCV +) (optional), BIPAP ASB (PCV + PS) (optional)
Patient Range	Adults, pediatric patients
Ventilation Frequency	2–80 breaths/min
Inspiratory Time	0.2–10 seconds
Tidal Volume	0.05–2.0 L (BTPS)
Inspiratory Flow Rate	0–180 L/min
Inspiratory Pressure	0–100 mbar
PEEP/interm.PEEP	0–35 mbar
ASB (Airway Support Pressure)	0–35 mbar (relative to PEEP)
Flow Acceleration	5–200 mbar/s
Oxygen Concentration	21–100 vol.%
Trigger Sensitivity	1–15 L/min
Airway Pressure Measurement	Peak pressure, plateau pressure, mean airway pressure, PEEP (0–100 mbar)
Minute Ventilation	0–100 L/min
Tidal Volume (BTPS)	0–4000 mL
Respiratory Rate	0–150 breaths/min
FiO₂ (Fraction of Inspired Oxygen)	15–100%
Respiratory Gas Temperature	18–51°C (with optional sensor)
Curve Display	Airway pressure/time, flow/time
Inspiration-Expiration Ratio	11:1–1:150
Maximum Flow Rate (during pressure support/spontaneous breathing)	180 L/min
Valve Response Time	≤5 ms
Safety Valve Opening Pressure	100 bar
Built-in Battery	Approximately 60 minutes (external battery up to 7 hours)

8413660 0–100 L/min Minute Ventilation Repetitive Exhalation Valve for Ventilator with Oxygen Concentration 0
