HEL-716-U-0-12-00 Thin-film Platinum Resistance Temperature Detector High Linearity Stability And Rapid Response Characteristics

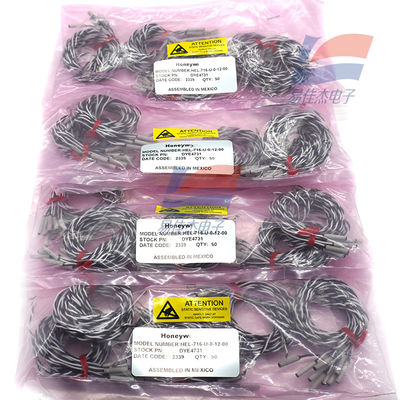

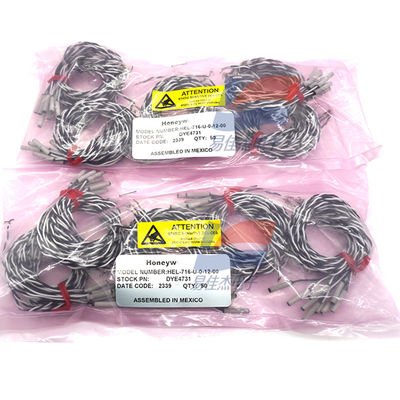

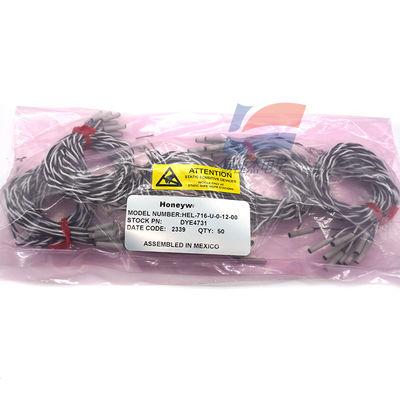

                                  HEL-716-U-0-12-00 Thin-film Platinum Resistance Temperature Detector

Product Overview:

The HEL-716-U-0-12-00 is a thin-film platinum RTD (Resistance Temperature Detector) belonging to Honeywell's HEL-700 series. Designed for industrial temperature monitoring and control, it combines high linearity, stability, and fast response in a compact ceramic package. The sensor features laser-trimmed resistance interchangeability and supports a wide temperature range, making it suitable for extreme environments.

Product Features:

1. Wide Temperature Range: Operates from -70°C to 260°C, suitable for extreme industrial environments .
2. High Precision: Laser-trimmed for ±0.2% resistance tolerance (standard) and optional ±0.1% .
3. Fast Response: <0.5-second time constant in flowing water ensures rapid feedback .
4. Stability: Minimal drift over time (<0.25°C/year) .
5. Robust Design: Ceramic housing resists high temperatures and chemical corrosion; TFE insulation for harsh conditions .
6. Plug-and-Play: Pre-assembled leads eliminate wiring complexity .

Application Fields:

1. Industrial Process Control: Monitoring temperatures in production lines, ovens, and kilns .
2. HVAC Systems: Air quality and temperature regulation in commercial buildings .
3. Motor & Bearing Monitoring: Preventing overheating in rotating equipment .
4. Battery Packs: Ensuring safe thermal management in energy storage systems .
5. Medical Devices: Autoclaves and sterilization equipment requiring high precision .
6. Aerospace: Extreme-temperature applications in aircraft and spacecraft .

Compliance & Certifications:

• RoHS Compliant: Meets EU environmental standards .
• CE Marking: Available upon request .
• IEC 60751: Complies with international RTD standards .

Ordering Information:

• Model: HEL-716-U-0-12-00
• Suffix Details:
• 00: No NIST calibration (optional calibration available)
• 12: 12-inch lead wire length
• 0: Standard ±0.2% resistance tolerance
• U: TFE-insulated leads
