HOA0880-T51 Phototransistor Sensor Optical Switches Transmissive Phototransistor Output

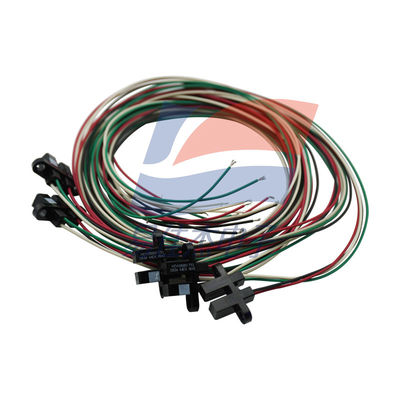

Large Image : HOA0880-T51 Phototransistor Sensor Optical Switches Transmissive Phototransistor Output

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	HOA0880-T51

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000pcs/Month

Contact Now

HOA0880-T51 Phototransistor Sensor Optical Switches Transmissive Phototransistor Output

Description

Sensing Distance:

3.18 Mm

Sensing Method:

Transmissive Slotted

Slot Width:

3.18 Mm

Aperture Width:

0.25 Mm

Highlight:

HOA0880-T51 Phototransistor Sensor

Transmissive Phototransistor Sensor

Optical Switches Phototransistor Sensor

HOA0880-T51 Phototransistor Sensor Optical Switches Transmissive Phototransistor Output

FEATURES
*Phototransistor output
*Four mounting configurations
*Accurate position sensing
*0.125 in.(3.18 mm) slot width
*Choice of detector aperture
*24.0 in.(610 mm) min.26 AWG UL 1429 wire leads
*Choice of opaque or iR transmissive housings

Collector- Emitter Voltage VCEO Max:	30 V
Maximum Collector Current	30 mA
If - Forward Current	50 mA
Minimum Operating Temperature	- 40℃
Maximum Operating Temperature	+ 85 ℃
Fall Time	15 us
Height	16.38 mm
Length	24.89 mm
Number of Channels	1 Channel
Output Type	Phototransistor
Pd - Power Dissipation	100 mW
Rise Time	15 us
Vf - Forward Voltage	1.6 V
Vr - Reverse Voltage	3 V
Width	6.6 mm

HOA0880-T51 Phototransistor Sensor Optical Switches Transmissive Phototransistor Output 0
