AHT30 Integrated Temperature And Humidity Sensor Digital Output

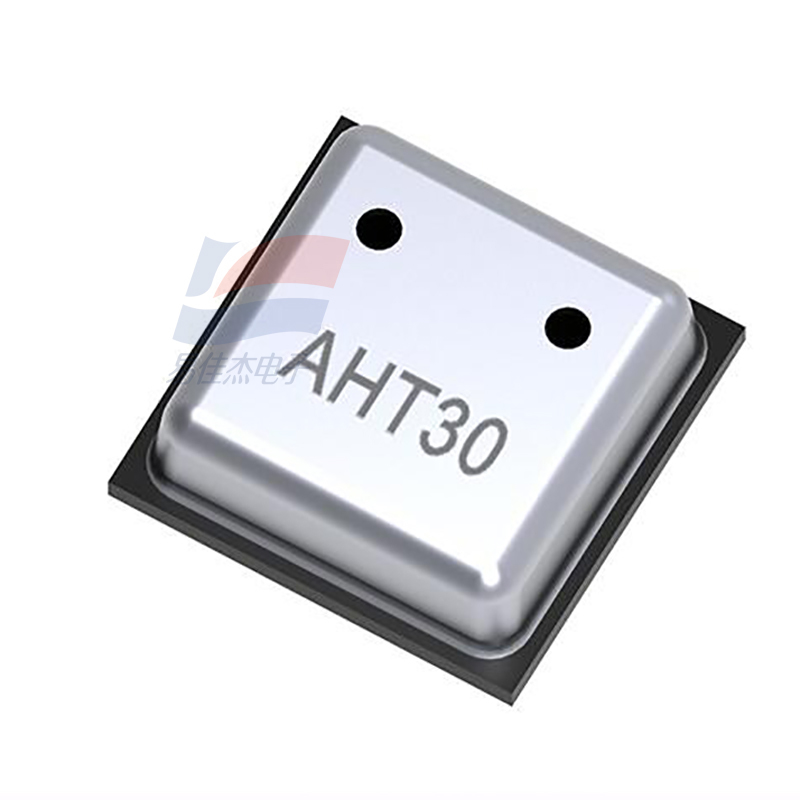

Large Image : AHT30 Integrated Temperature And Humidity Sensor Digital Output

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	AHT30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

AHT30 Integrated Temperature And Humidity Sensor Digital Output

Description

Power:

2.2-2.5V

2.2-2.5V:

-40~120℃、0~100%RH

Typ Accuray:

±0.5℃

Resolution:

0.01℃

Highlight:

digital temperature humidity sensor

integrated temperature sensor

AHT30 humidity sensor

AHT30 Integrated Temperature And Humidity Sensor Digital Output

Product summary

AHT30 is a new temperature and humidity sensor with the advantages of low power consumption and high precision. It is embedded in a dual row flat no-lead SMD package suitable for reflow soldering. It has a strong shell and very small size, can be easily integrated into various design with high reliability.

Application Range

Widely used in smart home, consumer electronics, medical, automotive, industrial, meteorological and other fields, such as home appliances ( air conditioners, HVAC, dehumidifiers and refrigerators,etc), test and inspection equipment and other related temperature and humidity detection and control products.

Specification:

Repeatability	±0.1℃,±0.1%RH
Response time	5-30S℃
Output	I2C

AHT30 Integrated Temperature And Humidity Sensor Digital Output 0
