Product Details:
|
| Nominal Power: | 300 Watts | Power Range: | 180 - 320 Watts |
|---|---|---|---|
| Nominal Current: | 21 Amps (DC) | Current Range: | 10 - 22 Amps (DC) |
| Ignition Voltage: | 23 - 35 Kilovolts | Nominal Operating Voltage: | 14 Volts (DC) |
| Highlight: | 300W xenon medical bulb,endoscopy cold light bulb,PE300BFA xenon lamp |
||

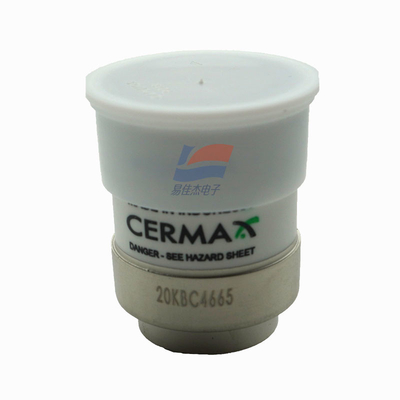

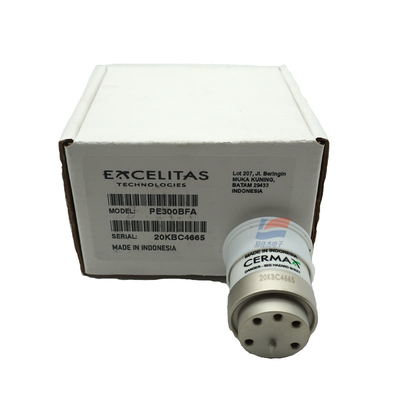

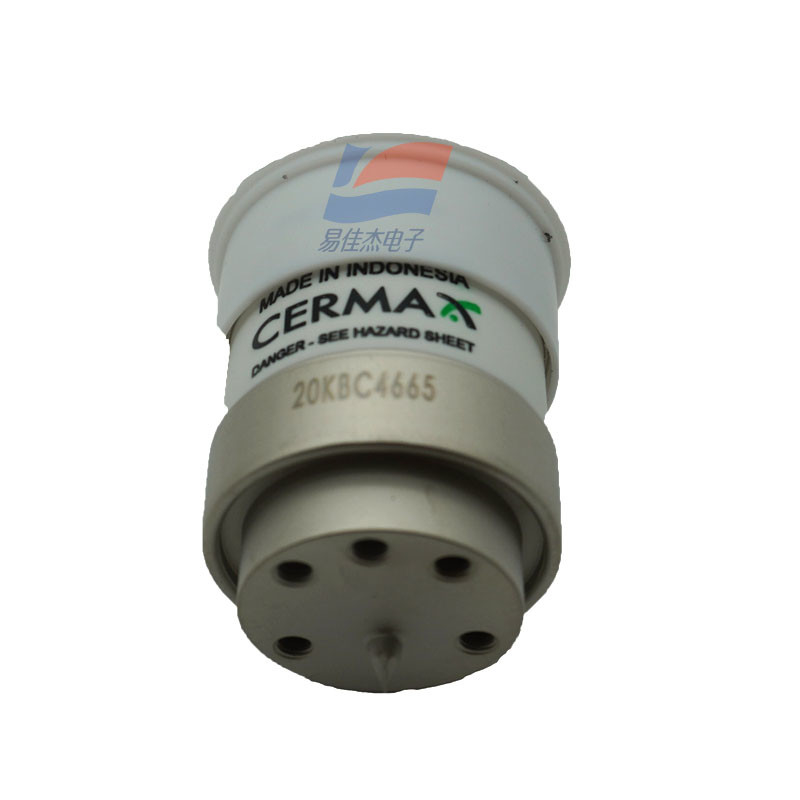

PE300BFA 300W Xenon Lamp Cold Light Bulb for Medical Endoscopy
Application Scenarios:
Product Features:
| Manufacturer Product Number | PE300BFA |
| Series | Cermax® |
| Type | Short - arc Parabolic Lamp |
| Style | Ceramic Body |
| Nominal Power | 300 watts |
| Power Range | 180 - 320 watts |
| Nominal Current | 21 amps (DC) |
| Current Range | 10 - 22 amps (DC) |
| Ignition Voltage | 23 - 35 kilovolts (system dependent) |
| Nominal Operating Voltage | 14 volts (DC) |
| Operating Voltage Range | 13 - 16 volts (DC) |
| Lifetime | 1000 hours typical |
| Maximum Temperature | 150 °C |
| Total Visible Output | 5000 lumens |
| Radiant Output | 50 watts |
| UV Output (<390 nm) | 2.6 watts |
| IR Output (>770 nm) | 29 watts |
| Reflector Type | Parabolic |
| Window Diameter | 1 inch (25.4 mm) |
| Focused Output (8mm Aperture) | 3130 lumens, 29 watts |
| Focused Output (6mm Aperture) | 1410 lumens, 14 watts |
| Peak Intensity | 3.0 x 10^5 candelas |
| Color Temperature | 5600 - 5900 kelvin |
| Arc Gap | 0.049 inches (1.24 mm) |
| Cathode Defocus 'd' | 0.003 inches (0.08 mm) |
| Weight | 132 grams |
![]()
