Product Details:
|
| Nominal Power: | 300 Watts | Power Range: | 275 - 325 Watts |
|---|---|---|---|
| Nominal Operating Voltage: | 13.5 Volts (DC) | Operating Voltage Range: | 12 - 15 Volts (DC) |
| Current Range: | 17 - 25 Amps (DC) | Minimum Ignition Pulse Duration: | 60 Ns |
| Highlight: | Cermax xenon arc lamp,Fiber optic medical illuminator lamp,Endoscopy spectroscopy xenon lamp |
||

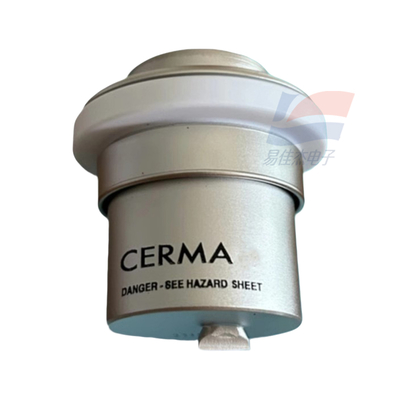

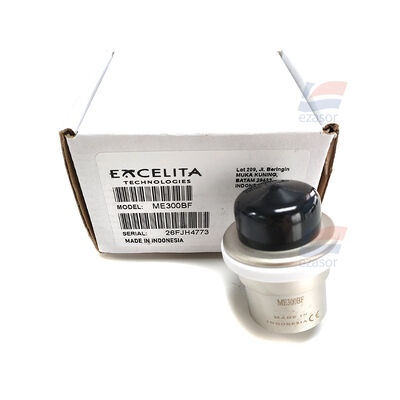

ME300BF Specialty Retrofit lamp Cermax xenon Arc lamp For Fiber Optic Medical Illuminators Endoscopy Spectroscopy
Applications:
It is used in fiber optic medical illuminators, endoscopy, spectroscopy, microscopy, infrared and visible spotlights/beacons, UV curing, and video projection.
Compatible Equipment
It can be used with equipment such as Smith & Nephew 500xl and Leica M525 F50 surgical microscope. It is also suitable for Pentax EPK - I - 5010.
Features:
| Nominal Power | 300 watts |
| Power Range | 275 - 325 watts |
| Nominal Operating Voltage | 13.5 volts (DC) |
| Operating Voltage Range | 12 - 15 volts (DC) |
| Current Range | 17 - 25 amps (DC) |
| Minimum Ignition Voltage | 23 kilovolts (system - dependent) |
| Minimum Ignition Pulse Duration | 60 ns |
| Total Visible Output | 5500 lumens |
| Radiant Output | 75 watts |
| UV Output (<390 nm) | 4.0 watts |
| IR Output (>770 nm) | 37 watts |
| Color Temperature | 6000 K |
| Window Diameter | 1 inch (25.4 mm) |
| Maximum Overall Length | 1.96 inches (49.8 mm) |
| Maximum Operating Temperature | 150 °C |
| Typical Lifetime | 1000 hours |
| Reflector Type | Parabolic |
| Body Type | Metal |
![]()
