APM3001 Infrared Dust Particle Sensor PM2.5 Sensor Detection Module For Home Air Purifiers Car Air Purifiers

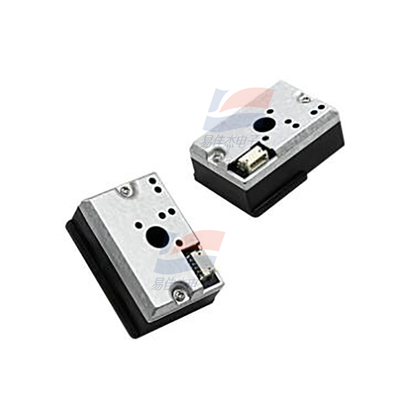

Large Image : APM3001 Infrared Dust Particle Sensor PM2.5 Sensor Detection Module For Home Air Purifiers Car Air Purifiers

Product Details:

Place of Origin:	CN
Model Number:	APM3001

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS

Contact Now

APM3001 Infrared Dust Particle Sensor PM2.5 Sensor Detection Module For Home Air Purifiers Car Air Purifiers

Description

Measuring Range:	0 - 500 μg/m³	Detection Accuracy:	±30% Or ±30 μg/m³
Galvanic Preheating Time:	60 S (start - Up Settling Time)	Working Voltage:	DC 5±0.5 V, Ripple < 50 Mv
Working Current:	≤120 Ma	Size:	59 Mm×45 Mm×20 Mm
Highlight:	infrared dust particle sensor for air purifiers , PM2.5 sensor module for car purifiers , home air purifier dust detection sensor

APM3001 Infrared Dust Particle Sensor PM2.5 Sensor Detection Module For Home Air Purifiers Car Air Purifiers

Product Introduction:

APM3001 is a compact infrared particle sensor with built - in MCU. It is based on the infrared light scattering principle, has stable detection performance, and can effectively detect low - concentration particles (below 100 μg/m³). It also has the characteristics of electromagnetic shielding design, good anti - interference, high precision and low power consumption.

Application Scenarios:

It is suitable for home air purifiers, car air purifiers, residential and commercial air - conditioners, HVAC systems, various indoor air quality monitors, Internet of Things hardware intelligence and other equipment.

Parameter	Minimum	Typical	Maximum	Unit
Supply Voltage	4.8	5	5.2	V DC
Operating Current	10	12	-	mA
Stand - by Current	2	3	-	mA
Measurable Particle Size	1	2.5	10	μm
Particle Concentration Range	0	-	1000	μg/m³
PM2.5 Concentration Measurement Accuracy	-	-	±15 μg/m³ (0 - 100 μg/m³); ±15% of the reading (100 - 1000 μg/m³)	-
Data Refresh Frequency	-	1	-	s
Power - on Stabilization Time	-	60	-	s
Response Time	-	8	-	s
Service Life	-	-	>5	Y
Dimensions	-	46.3×34.2×19	-	mm
Operating Temperature	-20	25	75	℃
Storage Temperature	-40	25	85

APM3001 Infrared Dust Particle Sensor PM2.5 Sensor Detection Module For Home Air Purifiers Car Air Purifiers 0
