Product Description:

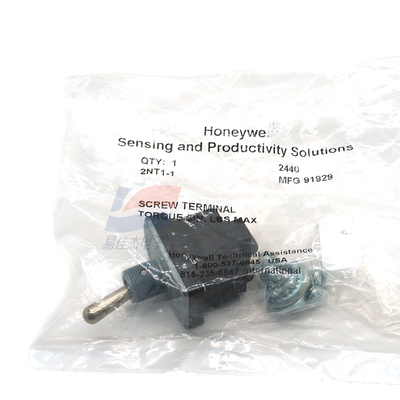

YJJ 2NT1-1 2NT1-2 Double-Pole Double-Throw Toggle Switch Is Suitable For Panel Installation Scenarios
Features:
2NT1-1 double-pole double-throw toggle switch is suitable for panel installation scenarios.
Basic Parameters
Rated Current: 20A (DC 28V) / 15A (AC 115V) / 6A (AC 230V)
Panel Cutout Diameter: 12.4mm
Sealing Grade: IP67/68 (Dust and Waterproof)
Operating Temperature Range: -40°C to +71°C
Structural Characteristics
It adopts screw terminal connection method, meeting the environmental requirements of NEMA 3, 3R, 4, 13 levels, suitable for outdoor or industrial scenarios. The internal structure includes an iron shell, plastic handle, phosphor bronze terminals, etc., and is treated with electroplating process to enhance corrosion resistance.
Application scenario
Suitable for equipment that requires frequent switching and has high sealing requirements, such as industrial control panels and automation devices.
REACH - SVHC:
Lighting: Non-Illuminated
Contact type: DPDT
Switch function: ON - OFF - ON
Installation style: Panel Mount
Terminal type: Screw
Bushing size: 15/32 - 32
Actuator: Paddle
Actuator style: Paddle
Trademark: Honeywell
Installation type: Bushing
Product type: Toggle Switches
Subcategory: Switches
Unit weight: 54.400 g

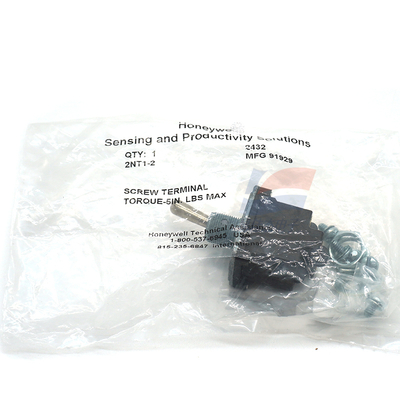

Description: 2NT1-2 Toggle Switch DPST OFF-ON Screw Term
Lighting: Non-Illuminated
Contact Type: DPST
Switch Function: ON - OFF
Installation Style: Panel Mount
Termination Type: Screw
Bushing Size: 15/32 - 32
Actuator: Paddle
Actuator Style: Paddle
Installation type: Bushing
Product type: Toggle Switches
Subcategory: Switches
Unit weight: 54.400 g
Specifications:
| Bushing size |
15/32 - 32 |
| Actuator |
Paddle |
| Installation type |
Bushing |
| Subcategory |
Switches |
