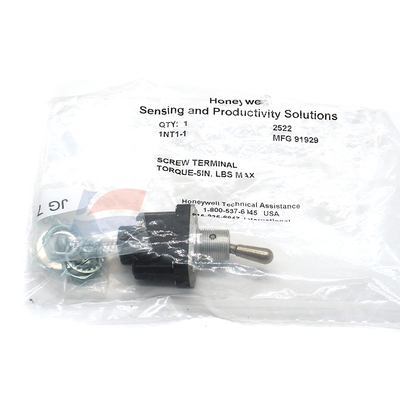

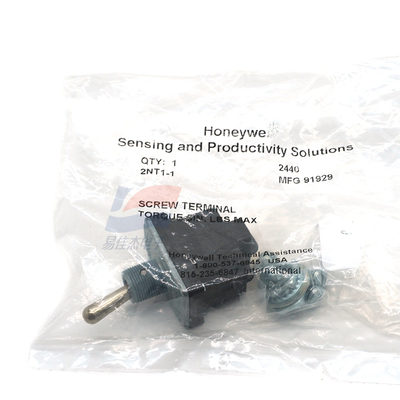

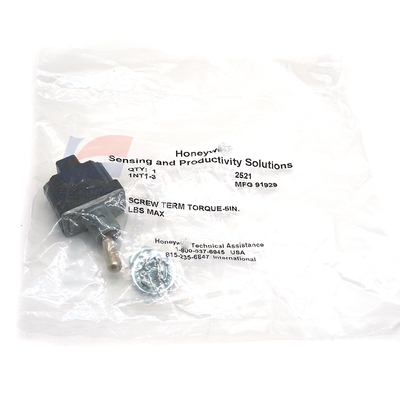

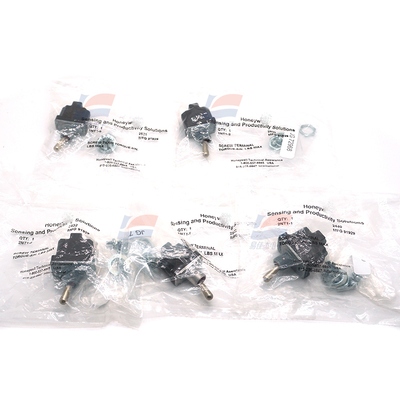

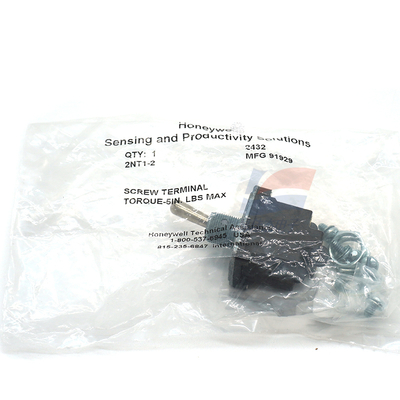

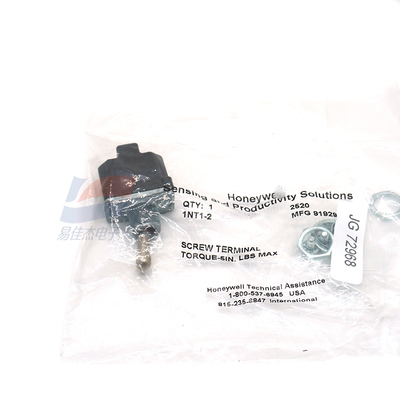

YJJ 1NT1-1 1NT1-2 1NT1-3 Double-Pole Double-Throw Toggle Switch Is Suitable For Panel Installation Scenarios

Product Description:

YJJ 1NT1-1 1NT1-2 1NT1-3 Double-Pole Double-Throw Toggle Switch Is Suitable For Panel Installation Scenarios

Features:

1NT1-1 1NT1-2 1NT1-3 double-pole double-throw toggle switch is suitable for panel installation scenarios.

Basic Parameters

‌Rated Current‌: 20A (DC 28V) / 15A (AC 115V) / 6A (AC 230V)

‌Panel Cutout Diameter‌: 12.4mm

‌Sealing Grade‌: IP67/68 (Dust and Waterproof)

‌Operating Temperature Range‌: -40°C to +71°C

Structural Characteristics

It adopts screw terminal connection method, meeting the environmental requirements of NEMA 3, 3R, 4, 13 levels, suitable for outdoor or industrial scenarios. The internal structure includes an iron shell, plastic handle, phosphor bronze terminals, etc., and is treated with electroplating process to enhance corrosion resistance.

Application scenario

Suitable for equipment that requires frequent switching and has high sealing requirements, such as industrial control panels and automation devices.

Lighting: Non-Illuminated

Contact type: SPDT

Switch function: ON - OFF - ON

Installation style: Panel Mount

Terminal type: Screw

Current rating: 15 A

AC voltage rating: 125 VAC

Bushing size: 15/32 - 32

Actuator: Paddle

Terminal sealing: Sealed

Contact plating: Nickel

IP rating: IP67, IP68

Actuator length: 17.02 mm

Actuator style: Standard Round

Trademark: Honeywell

Maximum operating temperature: + 71 °C

Minimum operating temperature: - 40 °C

Installation type: Bushing

Product type: Toggle Switches

Subcategory: Switches

Unit weight: 31.750 g
