Product Description:

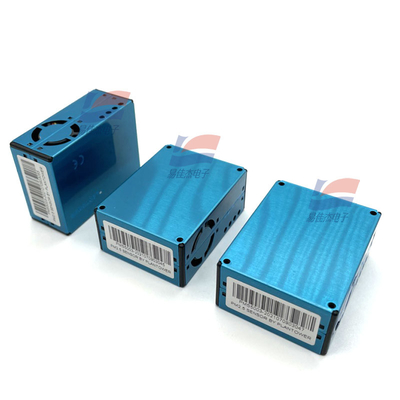

YJJ PMS5003 Ultra-Thin Digital Universal Particulate Matter Dust Sensor Is Used in Fresh Air System
Features:
Laser scattering principle to achieve accurate measurement
The sensor is 100% inspected and calibrated before delivery
Constant wind pressure and flow adaptive control system
Optical system adopts high performance laser module and photosensitive element
Adopt international big factory long life, super quiet fan
Depth algorithm is used to optimize compensation to ensure the stability and consistency of test results in different environments
Structure design of anti-dust sensor
Products through EMI, EMC test, and passed the reliability test
Product features:
Same side inlet and outlet air design, simplified structure design
Suitable for air purifier and fresh air system
PMS5003 dust sensor is a particle monitoring device based on the principle of laser scattering. The main parameters are as follows:
Core parameters
Measurement principle: Laser scattering principle, capable of accurately measuring suspended particles of different sizes.
Minimum resolution particle size: 0.3 µm.
Particle count efficiency: 50% at 0.3 µm, 98% at ≥ 0.5 µm.
Effective measurement range of particulate matter mass concentration (PM2.5 standard value): 0 - 500 µg/m³.
Power Supply Parameters: DC supply voltage range 4.5 - 5.5V, maximum operating current ≤ 100mA, standby current ≤ 10mA.
Performance indicators
Response time: Single response ≤ 1 second, overall response ≤ 10 seconds.
Environmental adaptability: Working temperature -10 to 60℃, humidity 0 to 95% (no condensation), storage temperature -20 to 80℃.
Data interface: Level output: L < 0.8V (3.3V), H > 2.7V (3.3V).
Installation and Maintenance
Installation Requirements: The air intake and exhaust ports should be tightly attached to the air holes of the equipment, avoiding placement directly in the purification system's duct. The sensor should be at least 20 centimeters above the ground.
Safety measures: Avoid short-circuiting the metal casing with other circuits. When used outdoors, additional protection against harsh weather conditions such as sand, rain, and snow is required.
Specifications:
| Detection range of particle size |
0.3-10μm |
| Effective range |
0-1000μg/m |
| Testing interval |
1S |
| Power stabilization time |
30S |
| weight of the |
<30g |
