PMSX003N-PLL Particulate Matter Sensor Laser Particle PM1.0 PM2.5

Large Image : PMSX003N-PLL Particulate Matter Sensor Laser Particle PM1.0 PM2.5

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	PMSX003N-PLL

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

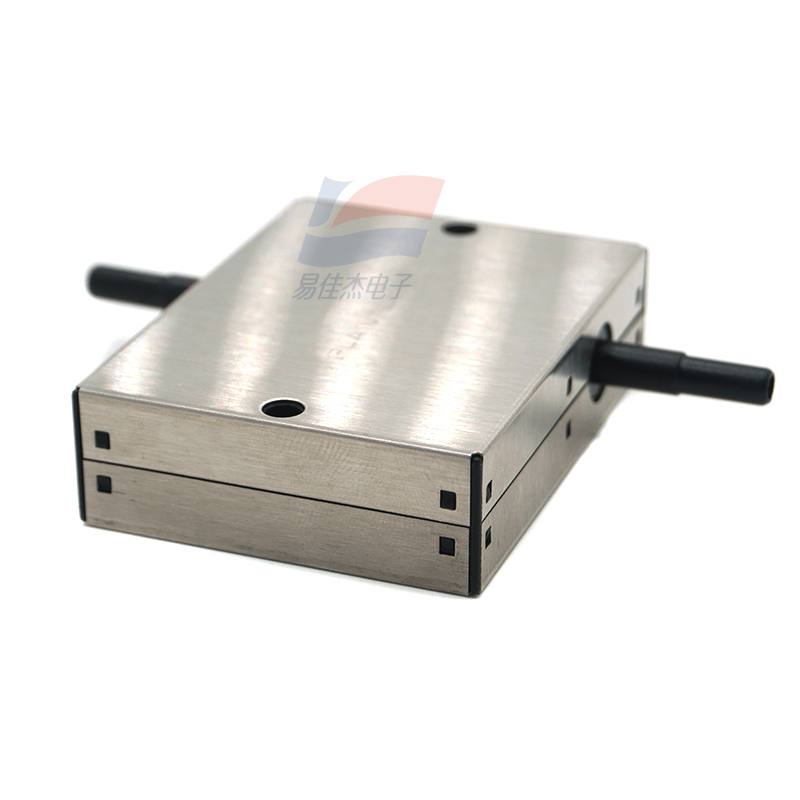

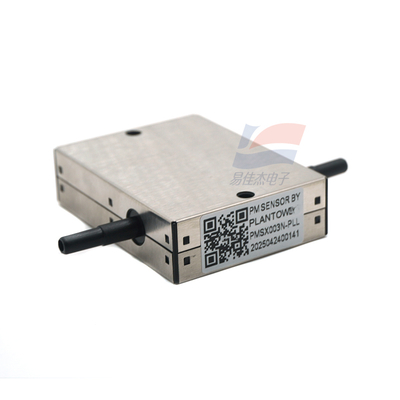

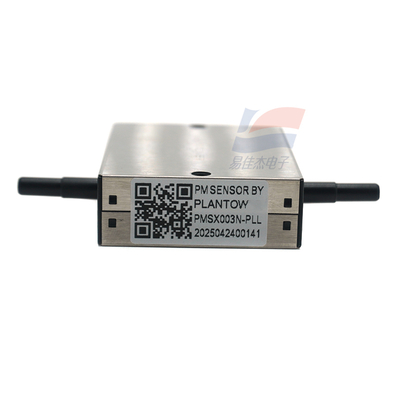

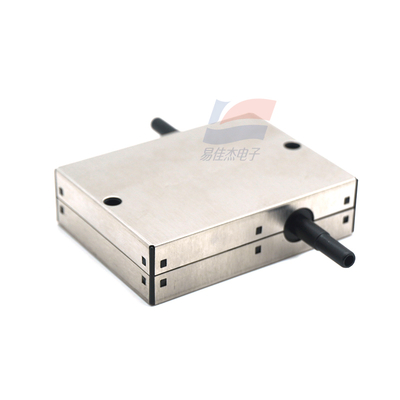

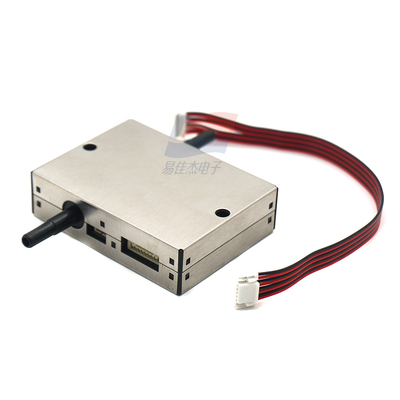

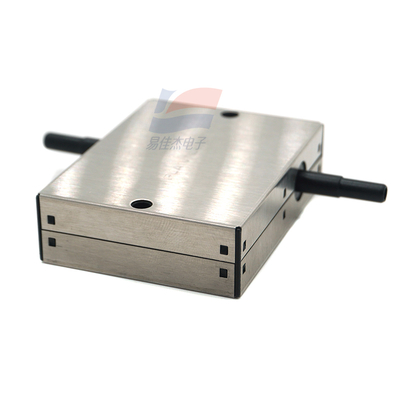

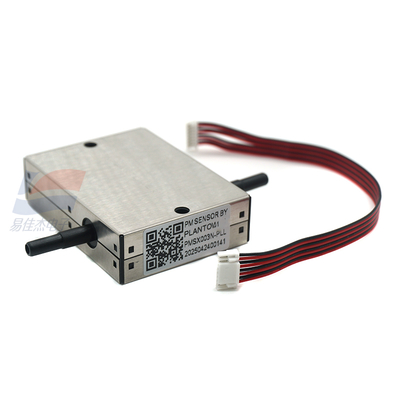

PMSX003N-PLL Particulate Matter Sensor Laser Particle PM1.0 PM2.5

Description

Range Of Measurement:

0.3~1.0

Counting Efficiency:

50%@0.3μ M

Effective Range:

0~500

Maximum Range（PM2.5 Standard):

≥1000

Highlight:

laser particulate matter sensor

PM2.5 sensor with warranty

PMSX003N-PLL particle sensor

PMSX003N-PLL Particulate Matter Sensor Laser Particle PM1.0 PM2.5

The pmsx003 sensor platform allows you to use your Plantower PMS5003, PMS7003, … laser based particulate matter sensors (datasheet) sensors with ESPHome.

As the communication with the PMSX003 is done using UART, you need to have an UART bus in your configuration with the rx_pin connected to the SEND/TX pin (may also be called the RX pin, depending on the model) of the PMS. Additionally, you need to set the baud rate to 9600.

Specification:

Resolution	1
Maximum Consistency Error	±10%@100~500μ g/m³
Standard Volume	0.1
Single Response Time	≤10

PMSX003N-PLL Particulate Matter Sensor Laser Particle PM1.0 PM2.5 0
