S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible

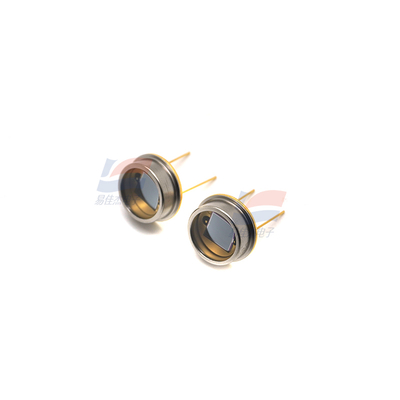

Large Image : S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S1226-8BK

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Months

Contact Now

S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible

Description

Package:

TO-8

Photosensitive Area Size:

5.8*5.8mm

Reverse Voltage VR Max:

Operating Temperature:

-40 To +100℃

Highlight:

UV photodiode sensor with suppressed IR

Si photodiode for UV to visible

S1226-8BK photodiode near IR suppressed

S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible

Features
Suppressed near IR sensitivity
High sensitivity in UV region (quartz glass type)
Low dark current
High reliability

Applications
>Analytical equipment
>Optical measurement equipment, etc.

Specification:

Spectral response range	320 to 1000 nm
Peak sensitivity wavelength (typ.)	720 nm
Photosensitivity (typ.)	0.36 A/W
Dark current (max.)	20 pA
Rise time (typ.)	2 μs
Terminal capacitance (typ.)	1200 pF
Noise equivalent power (typ.)	5.0×10-15 W/Hz1/2

S1226-8BK Si PhotodiodeSuppressed Near IR Sensitivity UV to Visible 0
