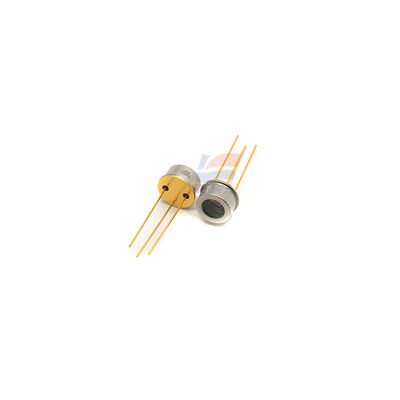

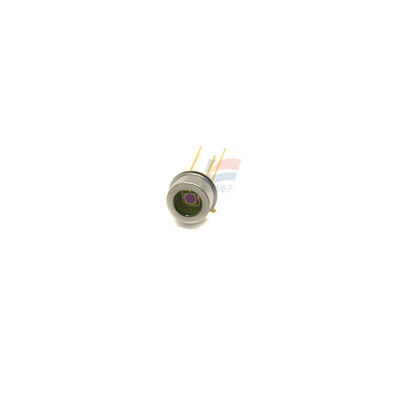

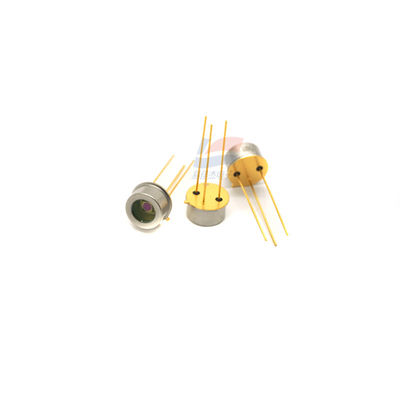

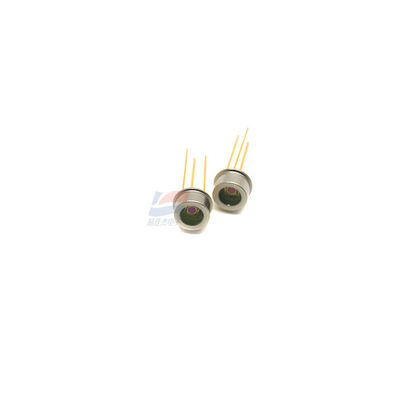

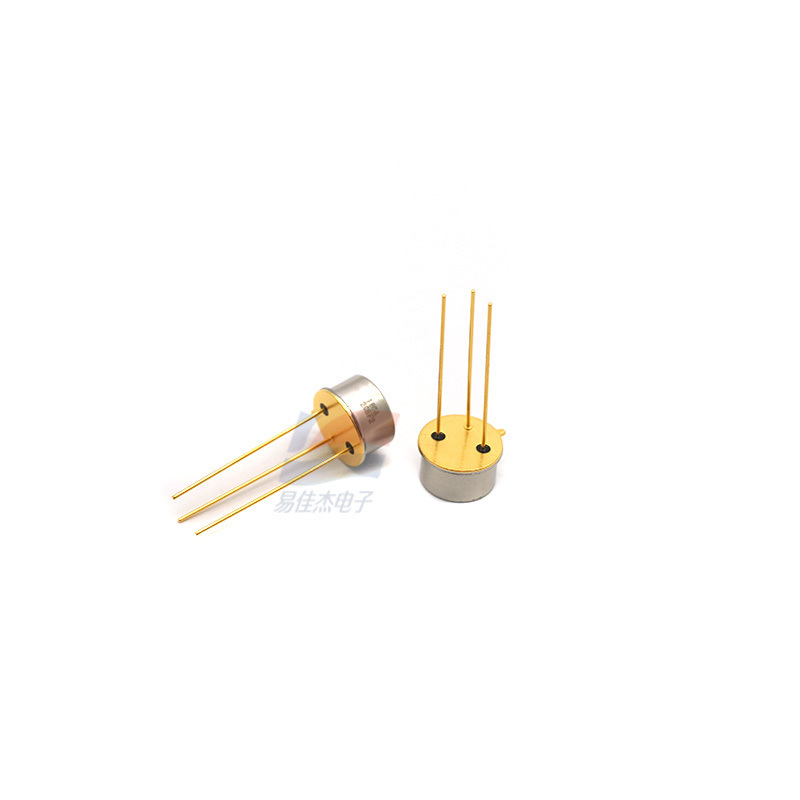

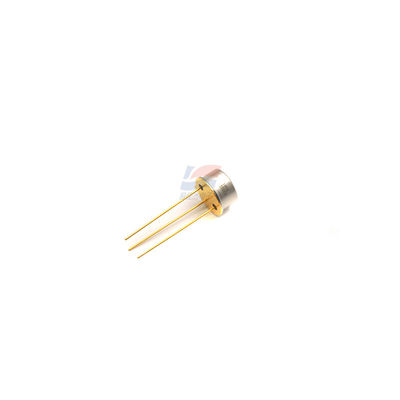

G12180-020A PIN Photodiode Silicon Low Terminal Capacitance Non Cooled

Large Image : G12180-020A PIN Photodiode Silicon Low Terminal Capacitance Non Cooled

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	G12180-020A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

G12180-020A PIN Photodiode Silicon Low Terminal Capacitance Non Cooled

Description

Photosensitive Area:	φ2.0 Mm	Number Of Elements:	1
Package:	Metal	Package Category:	TO-5
Cooling:	Non-cooled	Spectral Response Range:	0.9 To 1.7 μm
Highlight:	silicon PIN photodiode low capacitance , UV photodiode sensor non cooled , photodiode sensor with low terminal capacitance

G12180-020A PIN Photodiode Silicon Low Terminal Capacitance Non Cooled

Features
- Low noise, low dark current
- Low terminal capacitance
- Photosensitive area: φ2 mm
- Low noise

Applications
*Laser monitors
*Optical power meters
*Laser diode life test
*NIR (near infrared) photometry
*Optical communications

Options
Amplifier for InGaAs PIN photodiode C4159-03
Heatsink for one-stage TE-cooled type A3179
Heatsink for two-stage TE-cooled type A3179-01
Temperature controller for TE-cooler type C1103-04

Specification:

Peak sensitivity wavelength (typ.)	1.55 μm
Photosensitivity (typ.)	1.1 A/W
Dark current (max.)	7.5 nA
Cutoff frequency (typ.)	13 MHz
Terminal capacitance (typ.)	250 pF

G12180-020A PIN Photodiode Silicon Low Terminal Capacitance Non Cooled 0
