S7505-01 RGB Color Sensor Si Photodiode 3 Channel Plastic Materials

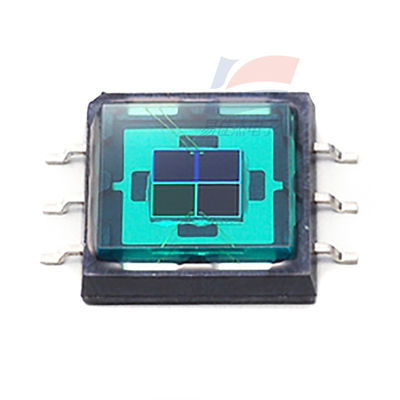

Large Image : S7505-01 RGB Color Sensor Si Photodiode 3 Channel Plastic Materials

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S7505-01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

S7505-01 RGB Color Sensor Si Photodiode 3 Channel Plastic Materials

Description

Product Type:

RGB Photodiode

Package Material:

Plastic

Package Type:

Surface Mount Type

Package Size:

9.0 × 9.6 × 2.1 Mm

Highlight:

RGB color sensor photodiode

3 channel photodiode sensor

plastic material UV photodiode

S7505-01 RGB Color Sensor Si Photodiode 3 Channel Plastic Materials

The S7505-01 uses a 3-channel (RGB) photodiode having blue, green and red sensitivities, and is molded into a surface mount type package.

Features
-3 ch (RGB) Si photodiode
-Surface mount type plastic package (9 × 9.6 mm)
-High sensitivity

Applications
*White balance adjustment
*Color identification
*Projector and Ty brightness level detection
*Color control
*Light source color temperature detection

Specification:

Photosensitive area	3.2 × 3.2 mm
Spectral response range (Blue)	400 to 540 nm
Spectral response range (Green)	480 to 600 nm
Spectral response range (Red)	590 to 720 nm
Peak sensitivity wavelength (Blue)	460 nm
Peak sensitivity wavelength (Green)	540 nm
Peak sensitivity wavelength (Red)	620 nm
Photosensitivity (Blue)	0.18 A/W
Photosensitivity (Green)	0.23 A/W
Photosensitivity (Red)	0.16 A/W
Dark current (max.)	0.2 nA
Rise time	0.5 μs
Operating temperature	-10 to +60 deg.C
Storage temperature	-20 to +70 deg.C

Structure /Absolute maximum ratings

Photosensitive area size/mm	Green, Red: 1.51.5 Blue: 1.51.5(2 elements)
Effective photosensitive area/mm2	Green, Red:2.25 Blue: 4.5
Reverse voltage VR max	10V
Operating temperature Topr	-10 to +60℃
Storage temperature Tstg	-20 to +70℃

S7505-01 RGB Color Sensor Si Photodiode 3 Channel Plastic Materials 0
