S7505-01 Si Photodiode RGB Color Surface Mount Type Plastic Materials

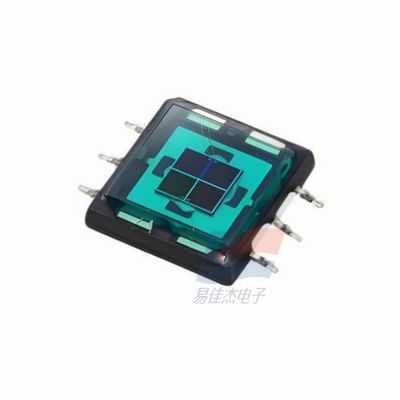

Large Image : S7505-01 Si Photodiode RGB Color Surface Mount Type Plastic Materials

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S7505-01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

S7505-01 Si Photodiode RGB Color Surface Mount Type Plastic Materials

Description

Product Type:

RGB Photodiode

Package Material:

Plastic

Package Type:

Surface Mount Type

Package Size:

9.0 × 9.6 × 2.1 Mm

Highlight:

Si photodiode RGB color sensor

surface mount photodiode plastic materials

UV photodiode sensor S7505-01

S7505-01 Si Photodiode RGB Color Surface Mount Type Plastic Materials

RGB color sensor
The S7505-01 uses a 3-channel (RGB) photodiode having blue, green and red sensitivities, and is molded into a surface mount type package.

Features
-3 ch (RGB) Si photodiode
-Surface mount type plastic package (9 × 9.6 mm)
-High sensitivity

Specifications

Photosensitive area	3.2 × 3.2 mm
Spectral response range (Blue)	400 to 540 nm
Spectral response range (Green)	480 to 600 nm
Spectral response range (Red)	590 to 720 nm
Peak sensitivity wavelength (Blue)	460 nm
Peak sensitivity wavelength (Green)	540 nm
Peak sensitivity wavelength (Red)	620 nm
Photosensitivity (Blue)	0.18 A/W
Photosensitivity (Green)	0.23 A/W
Photosensitivity (Red)	0.16 A/W
Dark current (max.)	0.2 nA
Rise time	0.5 μs
Operating temperature	-10 to +60 deg.C
Storage temperature	-20 to +70 deg.C

Structure

Photosensitive area size/mm	Green,Red: 1.51.5 Blue: 1.51.5(2 elements)
Effective photosensitive area/mm2	Green, Red: 2.25 Blue: 4.5
Reverse voltage VR max (v)	10
Operating temperature Topr(℃)	-10 to +60
Storage temperature Tstg(℃)	-20 to +70

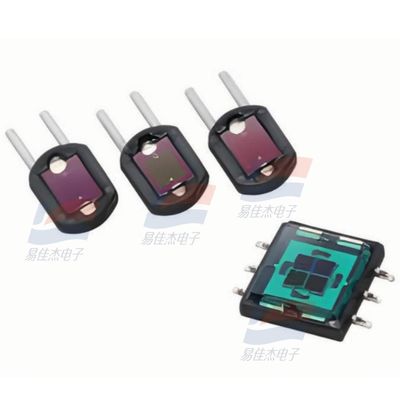

S7505-01 Si Photodiode RGB Color Surface Mount Type Plastic Materials 0
