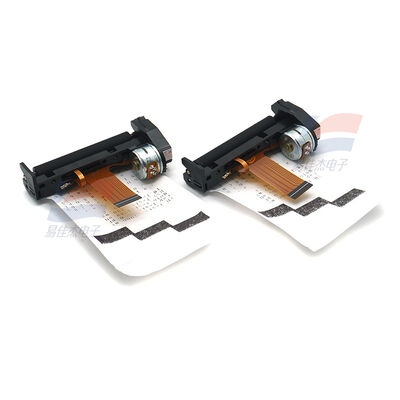

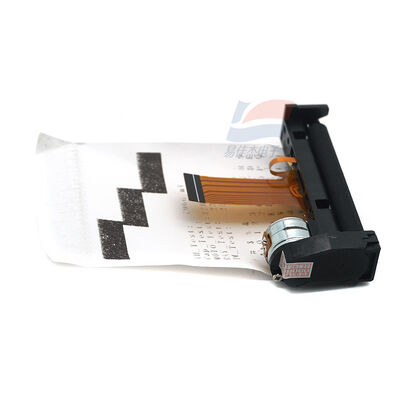

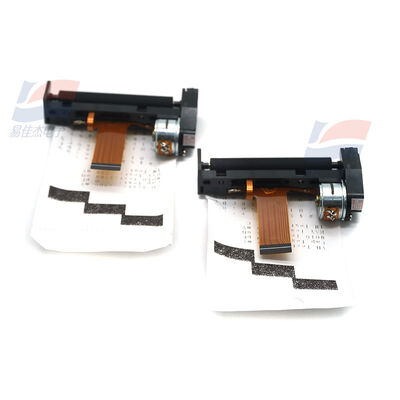

YJJ JX-2R-17 Compatible With Seiko LTP02-245-01Verifone Vx520 Thermal Print Head Printer Core

Product Description:

YJJ JX-2R-17 Compatible With Seiko LTP02-245-01Verifone Vx520 Thermal Print Head Printer Core

Features:

Brief introduction
1.1 Thermal printer mechanism
It is a small size, wide operating voltage (3.5~8.5V), high efficiency thermal printer
mechanism. The unique easy loading makes it become an ultra compact, reliable
and cost-effective printer mechanism.
1.2 Characteristics
Easy loading paper
Small size, light weight
Resistance high temperature plastic frame, metal gear cover
Print speed(max): 90 mm / s (at 8.5 V voltage of motor, 2-2 phase drive)
Wide operating voltage (3.5 V-8.5V)
High accuracy (8 dots / mm)
Wear life: more than 50 km
Low noise: brushless magnetic incentive step motor; high wear resistance,
composed of resistant to high / low temperature special engineering plastics gears,
makes it has very low noise.
Apply to:

Portable printer/terminal
EFT
Cash register
POS
Weight machines
Medical equipment
1.3 Description
The manual describes electrical characteristics and mechanical properties of
JX-2R-17. That is operation principle, basic parameters, the scope of application,
peripheral interface definitions and structure size. The contents of this document
are subject to change without notice. Please contact us for the latest information.
Jingxin Technology will not bear any responsibility for any damage or injuries
arising from use of this product that is not in accordance with the specifications and
the notes provided below.

Specifications:
