Product Description:

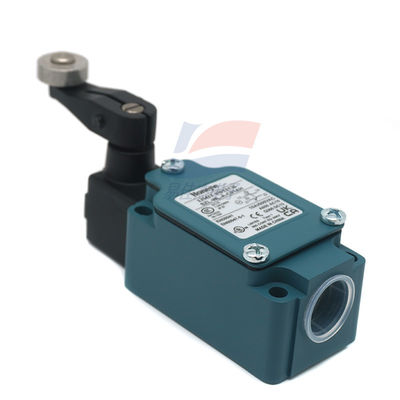

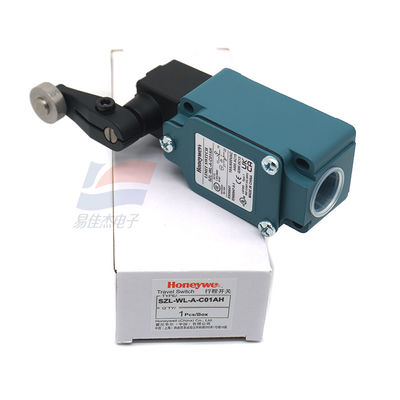

YJJ SZL-VL-S-J-N Miniature Limit Switch Is Used Machines Other Equipment For Industrial Scenarios With Limited Space

Features:

Electrical parameters

Parameter category Specific indicators

Rated voltage Maximum AC 380VAC, maximum DC 220VDC

Rated current AC circuit (AC - 15) 0.5A, DC circuit (DC - 13) 0.05A

Contact configuration Single-pole double-throw (SPDT), including normally open and normally closed contacts, using a forced-break design, contact material is silver alloy

Heat current Heat current can reach 10A at 250VAC

Electrical insulation performance Pulse withstand voltage 2500VDC, insulation voltage between terminal and housing of metal enclosure 1890VAC

Action frequency Mechanical action frequency up to 120 times/minute, electrical action frequency up to 30 times/minute

Mechanical and operation parameters

Parameter category Specific indicators

Actuator Side-mounted rotating adjustable steel roller actuator, actuator length 6.5mm

Operating force Maximum operating force 18N

Operating speed Compatible with operating speed range of 0.05mm/s - 2m/s, compatible with triggering requirements in different working conditions

Mechanical life Up to 10 million cycles (120 times/minute working condition)

Electrical life Rated resistance load, up to 500,000 cycles (30 times/minute working condition)

Environmental and protection parameters

Parameter category Specific indicators

Operating temperature Applicable temperature range -20℃ - 70℃, compatible with most industrial normal temperature and mild high-low temperature scenarios

Operating humidity Resistant to 95% RH high-humidity environment, sealed design can cope with the influence of humid conditions

Protection level IP67, has good waterproof and dustproof ability, compatible with dusty and humid industrial environments

Impact and vibration resistance Resistant to 30g impact (in accordance with IEC 60068 - 2 - 27 standard); resistant to 10g, 10Hz - 55Hz vibration environment

Pollution level Compatible with 3-level pollution environment, compatible with complex industrial scenarios with many conductive pollution

Physical and certification parameters

Parameter category Specific indicators

Shell and material Shell is die-cast metal material, combined with a flame-retardant thermoplastic plastic cover filled with glass, structure is sturdy

Weight Weight is between 120 - 150g, convenient for installation and deployment

Installation method Supports conduit connection or cable sealed connector connection, installation center size is 21mm×56mm, compatible with narrow installation space
