PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response

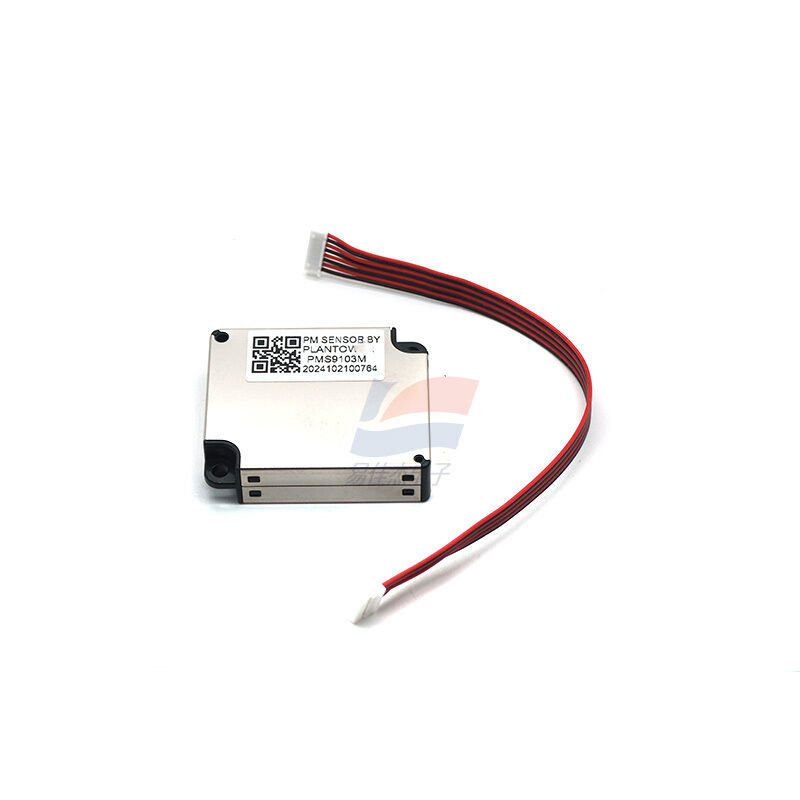

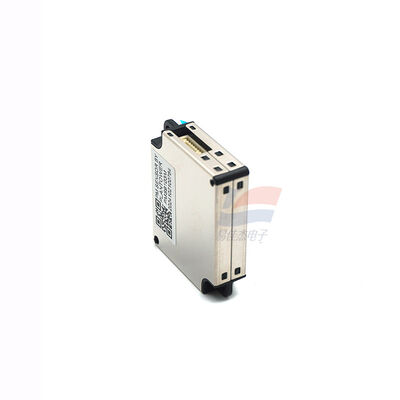

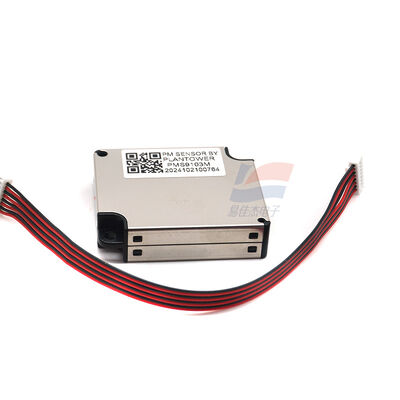

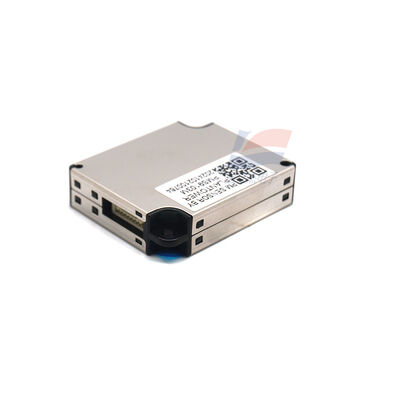

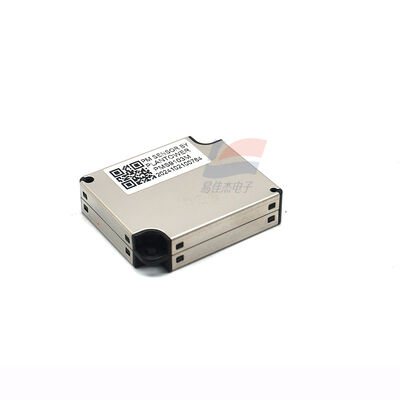

Large Image : PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	PMS9103M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response

Description

Highlight:

PMS9103M PM2.5 dust sensor

real-time PM2.5 sensor module

PMS9103M particle sensor with warranty

PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response

Main characteristics
* Zero false alarm rate
* Real-time response
* Correct data
* Minimum distinguishable particle diameter :0.3 micrometer
* High anti-interference performance because of the new structure of six sides shielding
* Optional direction of air inlet and outlet in order to adapt the different design

Specification:

Parameter	Index	Unit
Particle Range of measurement	0.3~1.0; 1.0~2.5; 2.5~10	Micrometer (μm)
Particle Counting Efficiency	50%@0.3μm 98%@≥0.5μm	-
Particle Effective Range (PM2.5 standard)	0~500	μg/m³
Particle Maximum Range (PM2.5 standard) *	≥1000	μg/m³
Particle Resolution	1	μg/m³
Particle Maximum Consistency Error (PM2.5 standard data)	±10%@100~500μg/m³ ±10μg/m³@0~100μg/m³	-
Particle Standard Volume	0.1	Litre (L)
Single Response Time	<1	Second (s)
Total Response Time	<10	Second (s)
DC Power Supply	Typ: 5.0 Min:4.5 Max:5.5	Volt (V)
Active Current	≤100	Milliampere (mA)
Standby Current	≤10

PMS9103M Dust Particle Sensor Module PM2.5 Real Time Response 0
