4R+ C03-0912-000 PID VOC Gas Sensor 10.6eV Lapm Use For Gas Detector

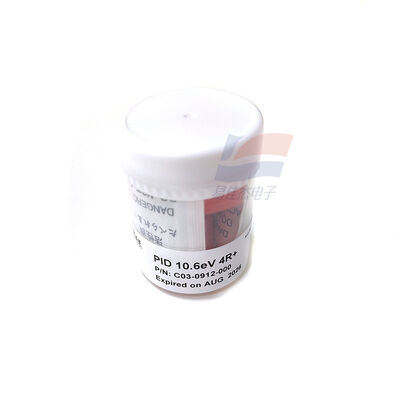

Large Image : 4R+ C03-0912-000 PID VOC Gas Sensor 10.6eV Lapm Use For Gas Detector

Product Details:

Place of Origin:	USA
Brand Name:	RAE
Model Number:	PID 10.6eV 4R+ C03-0912-000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

4R+ C03-0912-000 PID VOC Gas Sensor 10.6eV Lapm Use For Gas Detector

Description

Detection Gas:

Volatile Organic Compounds (VOCs)

Sensor Type:

Photoionization (PID), 10.6 EV Lamp

Measurement Range:

0.1 - 2000 Ppm

Resolution:

0.1 Ppm

Highlight:

PID VOC gas sensor 10.6eV

4R+ C03 gas sensor for detectors

VOC gas sensor with warranty

4R+ C03-0912-000 PID VOC Gas Sensor 10.6eV Lapm Use For Gas Detector

C03-0912-000 is a photoionization (PID) gas sensor, primarily used for detecting volatile organic compounds (VOCs). It is compatible with portable gas detectors such as the ToxiRAE Pro and is often used as an original replacement sensor.

Specification:

Response Time (T90)	15 seconds
Drift Characteristics	Zero-point drift and span drift < 10% of daily signal
Compatible Detector Models	ToxiRAE Pro PID, AreaRAE Plus, and other series gas detectors
Detector Type	Portable gas detector
Calibration Gas	100 ppm isobutylene
Lifespan: Operating life	Up to 1 year under normal air use
Storage Life	3 months when stored in a sealed container
Environmental and Physical Parameters	Standard Test Environment: Temperature 68°F, Relative Humidity 50% (non-condensing), Ambient Pressure 1 atmosphere (1013 mbar)
Weight	Approximately 0.5 lbs
Warranty and After-Sales Service	Warranty Period: 1 year from the date of shipment

4R+ C03-0912-000 PID VOC Gas Sensor 10.6eV Lapm Use For Gas Detector 0
