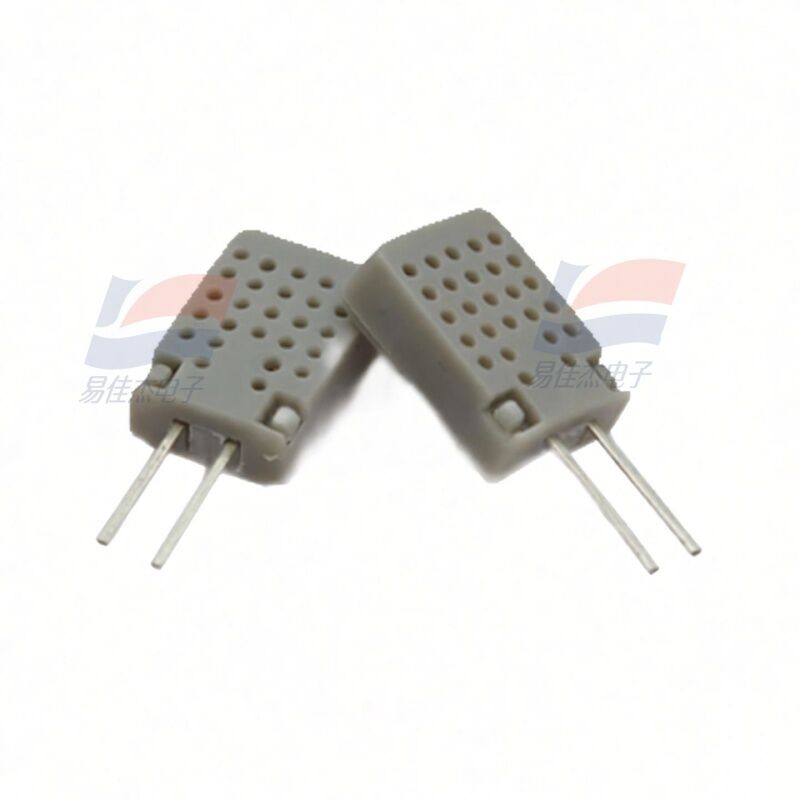

MS-Z2 MS-Z202 Macromolecule Humidity Sensor For Environmental Monitoring

Large Image : MS-Z2 MS-Z202 Macromolecule Humidity Sensor For Environmental Monitoring

Product Details:

Place of Origin:	China
Brand Name:	Winsen
Model Number:	MS-Z2 MS-Z202

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

MS-Z2 MS-Z202 Macromolecule Humidity Sensor For Environmental Monitoring

Description

Highlight:

Macromolecule humidity sensor for environmental monitoring

MS-Z2 humidity temperature sensor

Macromolecule environmental monitoring sensor

MS-Z2 MS-Z202 Macromolecule Humidity Sensor For Environmental Monitoring

Applications :
*warehousing *industry production
*and process control *environmental monitoring
*home appliances and meteorology

Product Advantages:
*Wide humidity detected rang
*Fast response
*Small Humidity hysteresis error
*Simple manufacture
*Easy integration

Specification:

Working range	T:0~60°C H:20~90%RH
Storage range	T:-25~70°C H:≤90%RH (non condensation)
Detection range	10~90%RH(0~60℃)
Rated voltage	1.5V AC(MAX, sine wave)
Rated power	0.2mW(MAX, sine wave)
Working frequency	500Hz~2kHz
Nominal value &range	31 (20～50)KΩ(60%RH, 25°C)
Temperature Character	≤0.5%RH/°C
Hysteresis	±2%RH
Response time	Moisture absorption:≤30s Dehumidification:≤40s
Stability	2%RH/year
Accuracy	3%RH

MS-Z2 MS-Z202 Macromolecule Humidity Sensor For Environmental Monitoring 0
