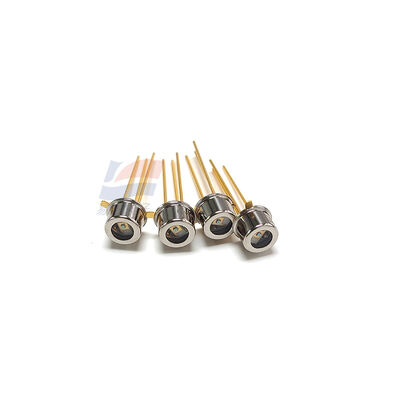

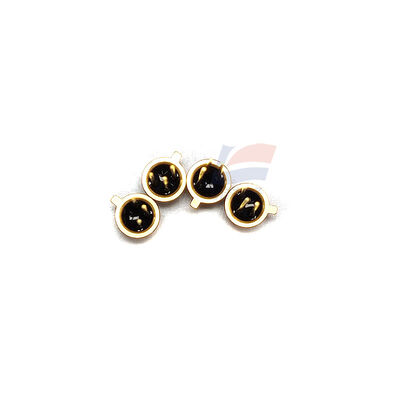

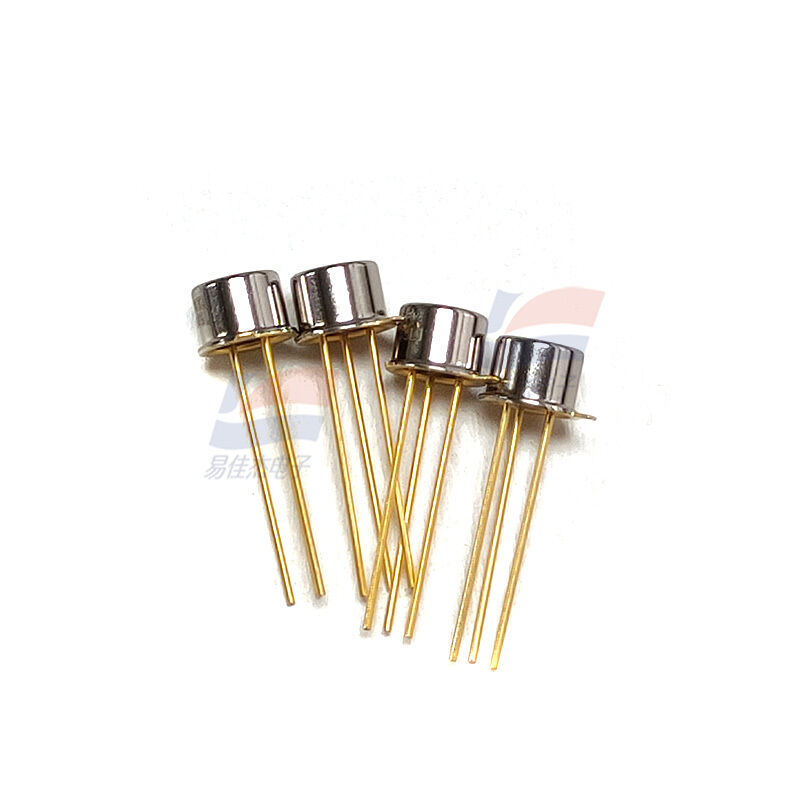

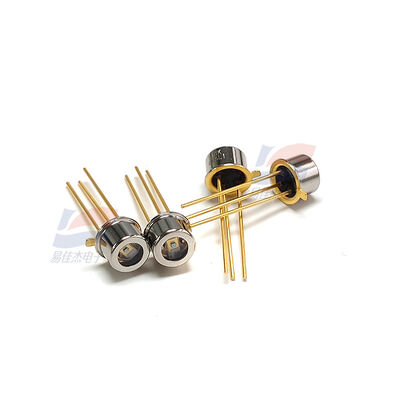

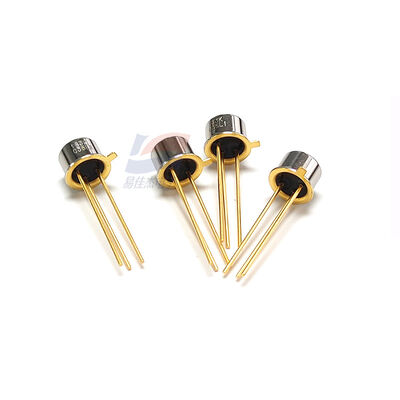

G12183-003K InGaAs PIN Photodiode Non Cooled Low Noise

Large Image : G12183-003K InGaAs PIN Photodiode Non Cooled Low Noise

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	G12183-003K

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000pcs/Month

Contact Now

G12183-003K InGaAs PIN Photodiode Non Cooled Low Noise

Description

Photosensitive Area:

φ0.3 Mm

Number Of Elements:

Package:

Metal

Package Category:

TO-18

Highlight:

InGaAs PIN photodiode low noise

UV photodiode sensor non cooled

InGaAs photodiode with warranty

G12183-003K InGaAs PIN Photodiode Non Cooled Low Noise

Features
Cutoff wavelength: 2.55 to 2.6 ym
Low cost
Photosensitive area: фo.3 to ф3 mm
Low noise
High sensitivity
High reliability
High-speed response
High short-wavelength sensitivity
(G12183-210KA-03):0.4 A/W(=900 nm)

Applications
Optical power meters
Gas analysis
Moisture meters
NIR(near infrared)photometry

Specification:

Cooling	Non-cooled
Spectral response range	0.9 to 2.6 μm
Peak sensitivity wavelength (typ.)	2.3 μm
Photosensitivity (typ.)	1.3 A/W
Dark current (max.)	4000 nA
Cutoff frequency (typ.)	50 MHz
Terminal capacitance (typ.)	50 pF
Noise equivalent power (typ.)	4×10-13 W/Hz1/2

G12183-003K InGaAs PIN Photodiode Non Cooled Low Noise 0
