AHT2415C00 Temperature and Humidity Probe Integrated Digital Chip I2C Signal Output

Large Image : AHT2415C00 Temperature and Humidity Probe Integrated Digital Chip I2C Signal Output

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	AHT2415C00

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000pcs/Month

Contact Now

AHT2415C00 Temperature and Humidity Probe Integrated Digital Chip I2C Signal Output

Description

Operating Voltage:

2.2~5.5V

Working Current:

980μA (Typical)

Temperature Range:

-30~80℃

Humidity Range:

0~100%RH

Highlight:

digital temperature humidity probe

I2C signal humidity sensor

integrated chip temperature sensor

AHT2415C00 Temperature and Humidity Probe Integrated Digital Chip I2C Signal Output

Product Summary

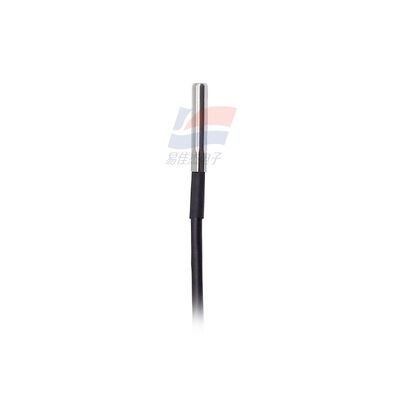

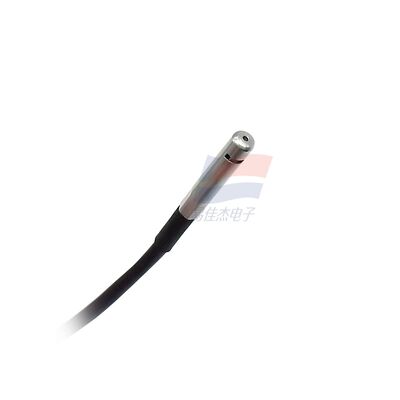

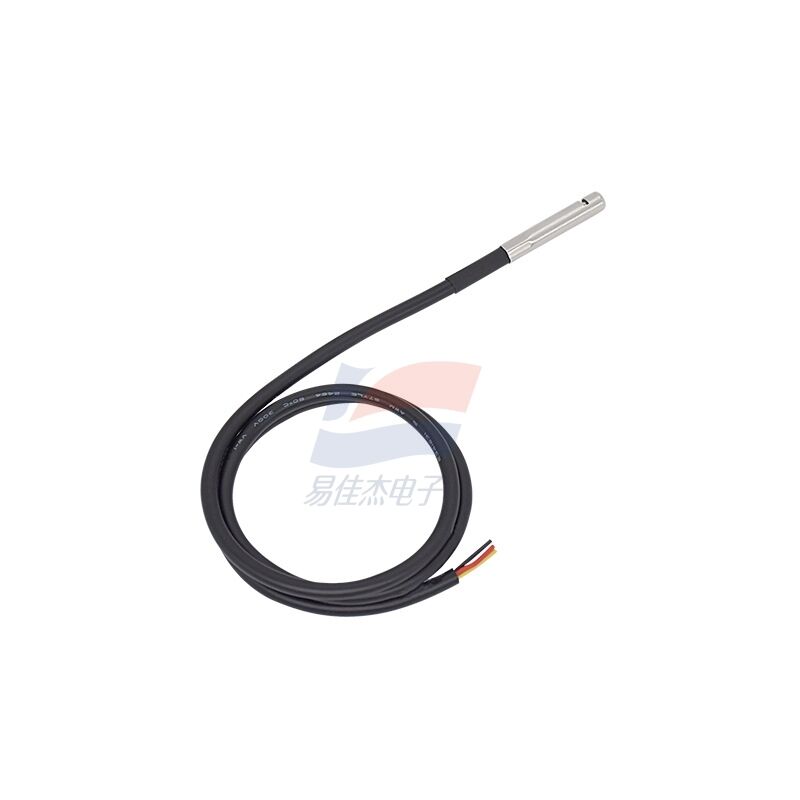

AHT2415C temperature and humidity probe adopts an integrated digital temperature and humidity chip, which outputs standard I²C signals and calibrated before delivery. The sensor Filter Membrane can effectively prevent the interference by water vapor and dust; Sensor
wire length 550mm (±5), and offers customization options

Features
* 304 stainless steel shell
* Excellent impact resistance, heat resistance, low
temperature resistance, chemical resistance and
electrical properties
* Fully calibrated
* Digital output, I²C interface
* Excellent long-term stability
* Quick response, fast recovery time, strong anti-interference ability

Product Parameters

Operating Voltage	2.2~5.5V
Working Current	980μA (Typical)
Temperature Range	-30~80℃
Humidity Range	0~100%RHAccuracy ±0.5℃;±3%RH
Typical Power	3.2mWInterface I²C

AHT2415C00 Temperature and Humidity Probe Integrated Digital Chip I2C Signal Output 0
