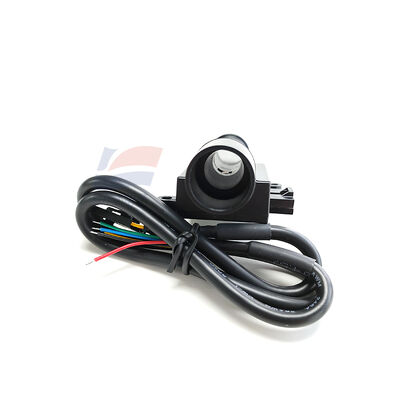

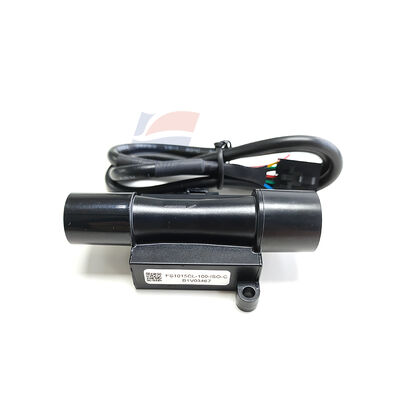

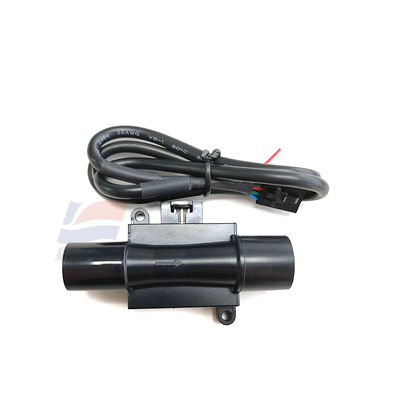

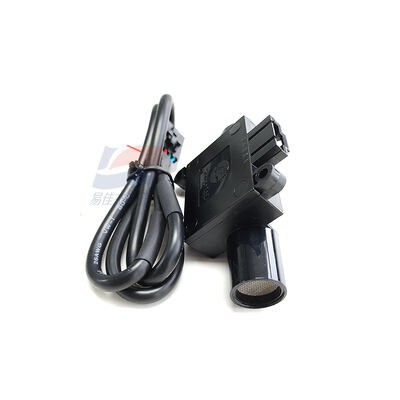

FS1015CL-100-ISO-C MEMS Mass Flow Sensor for Medical Ventilators & Anesthesia Machines Respiratory Therapy Equipment

Large Image : FS1015CL-100-ISO-C MEMS Mass Flow Sensor for Medical Ventilators & Anesthesia Machines Respiratory Therapy Equipment

Product Details:

Place of Origin:	USA
Model Number:	FS1015CL-100-ISO-C

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

FS1015CL-100-ISO-C MEMS Mass Flow Sensor for Medical Ventilators & Anesthesia Machines Respiratory Therapy Equipment

Description

Flow Range:	0 ~ 100 SLPM	Accuracy:	±(2.0 + 0.5% FS) %
Repeatability:	±0.5% Of Reading	Supply Voltage:	5.0 V DC ±5% (4.75~5.25 V)
Output Signal:	Analog Linear: 0.5 ~ 4.5 V DC	Response Time:	≤8 Ms (max)
Highlight:	MEMS mass flow sensor for medical ventilators , air flow sensor for anesthesia machines , respiratory therapy equipment flow sensor

FS1015CL-100-ISO-C MEMS Mass Flow Sensor for Medical Ventilators & Anesthesia Machines Respiratory Therapy Equipment

Applications:

Medical ventilators & anesthesia machines
Respiratory therapy equipment
Medical gas monitoring & control
Endoscopic gas flow systems
Industrial clean gas flow meters

Flow Range	0 ~ 100 SLPM
Accuracy	±(2.0 + 0.5% FS) %
Repeatability	±0.5% of reading
Supply Voltage	5.0 V DC ±5% (4.75~5.25 V)
Output Signal	Analog linear: 0.5 ~ 4.5 V DC
Response Time	≤8 ms (max)
Operating Temp	-10°C ~ +55°C
Operating Humidity	10~95% RH (non-condensing)
Media	Clean, dry gases
Max Pressure	0.2 MPa (2 bar / 30 psi)
Pressure Loss	~1300 Pa @ 100 SLPM

FS1015CL-100-ISO-C MEMS Mass Flow Sensor for Medical Ventilators & Anesthesia Machines Respiratory Therapy Equipment 0
