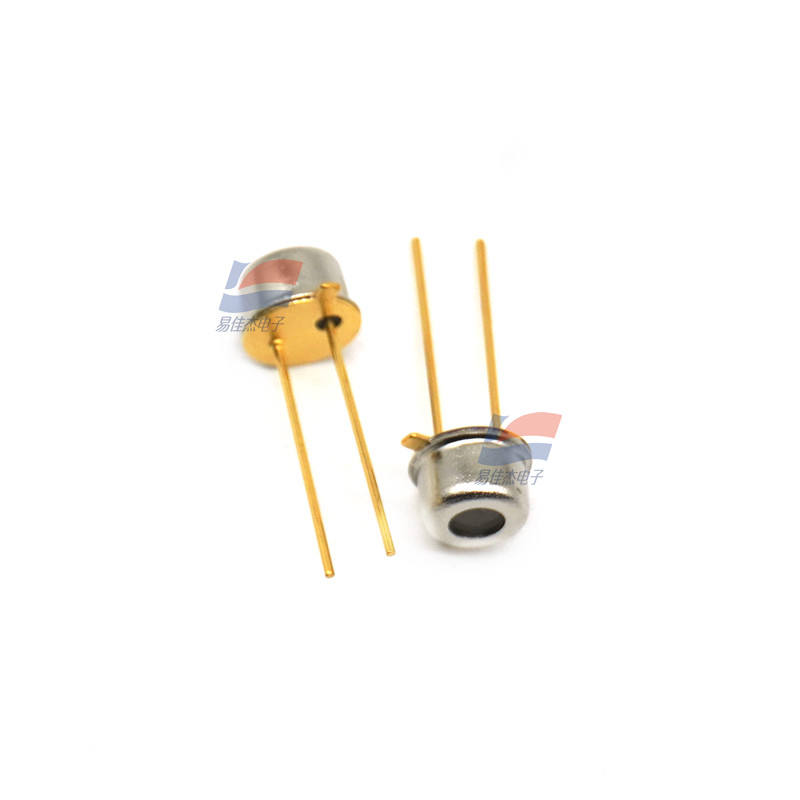

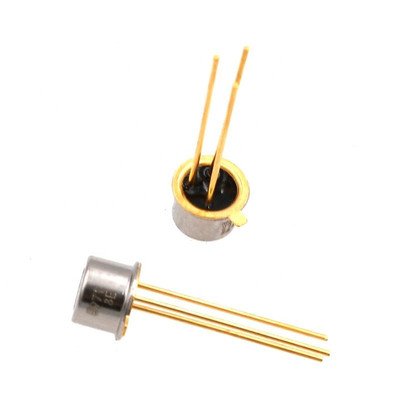

S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled

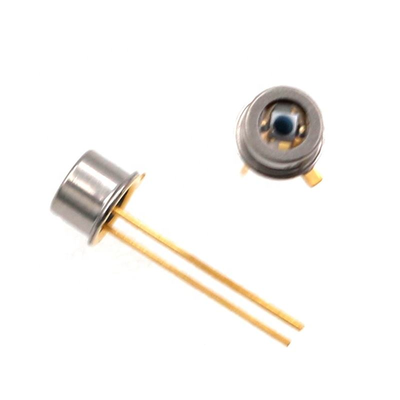

Large Image : S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S5971

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000pcs/Month

Contact Now

S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled

Description

Photosensitive Area:

φ1.2 Mm

Package:

Metal

Package Category:

TO-18

Cooling:

Non-cooled

Highlight:

high speed Si PIN photodiode

non-cooled UV photodiode sensor

metal case S5971 photodiode

S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled

High-speed response (100 MHz)

The S5971 is a high-speed Si PIN photodiode designed for visible to near infrared light detection. This photodiode provides wideband characteristics at a low bias, making them suitable for optical communications and other high-speed photometry.

Features
- High-speed response: 100 MHz (VR=10 V)
- Low price
- High reliability

Applications
*Optical fiber communications
*High-speed photometry
*Violet laser detection (s5973-02)

Specification:

Reverse voltage (max.)	20 V
Spectral response range	320 to 1060 nm
Peak sensitivity wavelength (typ.)	920 nm
Photosensitivity (typ.)	0.55 A/W
Dark current (max.)	1000 pA
Cutoff frequency (typ.)	100 MHz
Terminal capacitance (typ.)	3 pF
Noise equivalent power (typ.)	7.4×10-15 W/Hz1/2

S5971 Si PIN Photodiode High Speed Photodiodes Metal Non-cooled 0
