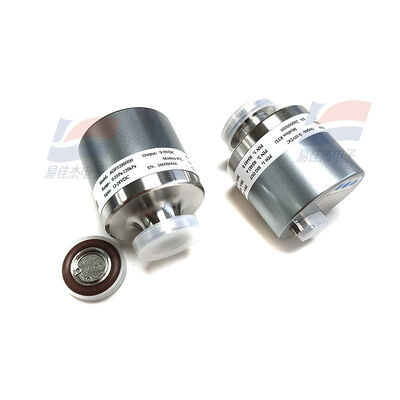

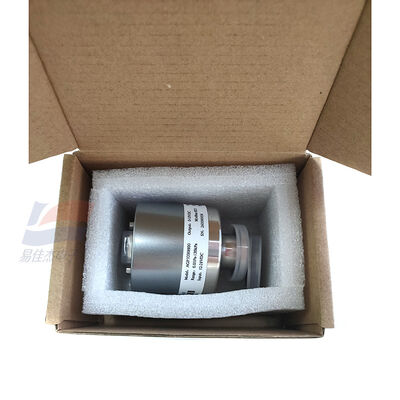

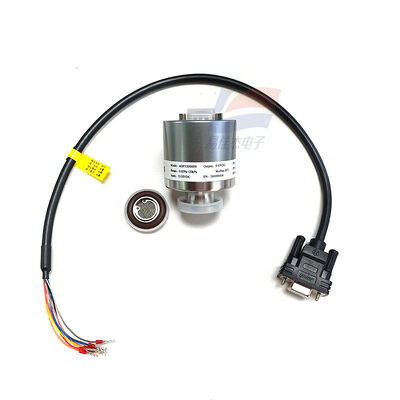

YJJ AGP3200H00 0.05 Pa-120KPa Digital Pirani Vacuum Gauge for Leak Detection Assistance

Product Description:

YJJ AGP3200H00 0.05 Pa-120KPa Digital Pirani Vacuum Gauge for Leak Detection Assistance

Features:

AGP3 series is a digital pyrani vacuum gauge based on the MEMS resistance thermal conductivity principle. The core models are AGP3000/3100/3200, covering an absolute pressure range of 0.05 Pa to 120 kPa, suitable for medium and low vacuum scenarios. It features a color screen for direct reading, multiple outputs, and Modbus communication, and can replace traditional vacuum gauges. It is suitable for industrial process monitoring and equipment integration.
Core parameters (AGP3000 as the benchmark):
Parameter category Specific parameters Notes
Measurement range 0.05 Pa - 120 kPa (absolute pressure, N2/air) Ranges from rough vacuum to micro-positive pressure
Accuracy class 0.05-0.1 Pa: ±50% of reading; 0.1 Pa - 15 kPa: ±15% of reading; 15 - 120 kPa: ±0.5% of reading. N2 calibration, correction required for other gases
Unit switching Pa, Torr, mbar Adapts to different industry conventions
Response time ≤100 ms Meets real-time control requirements
Output and communication 0-10V analog output, RS485 (Modbus RTU) Address 1-255, compatible with PLC/DCS
Power supply 9-28 VDC, power consumption < 1.2 W Adapts to industrial power supply
Interface KF16 flange (304 stainless steel, electro-polished) Selectable KF16 to KF25/KF40/VCR/NPT, etc.
Display and operation TFT-LCD color screen, key control Primary interface displays pressure, address, rate, unit
Environment and protection Working temperature - 10~60℃; IP65 protection Adapts to industrial harsh environments
Repeatability ±2% (0.1 Pa - 120 kPa) Ensures measurement stability Working principle
Based on the gas thermal conduction effect: The sensor is equipped with a MEMS heating resistor and a Wheatstone bridge. When the air pressure changes, the gas thermal conductivity changes, causing the resistance temperature and the bridge balance to change. Through the circuit, this is converted into a pressure signal, achieving digital display and output.
