S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry

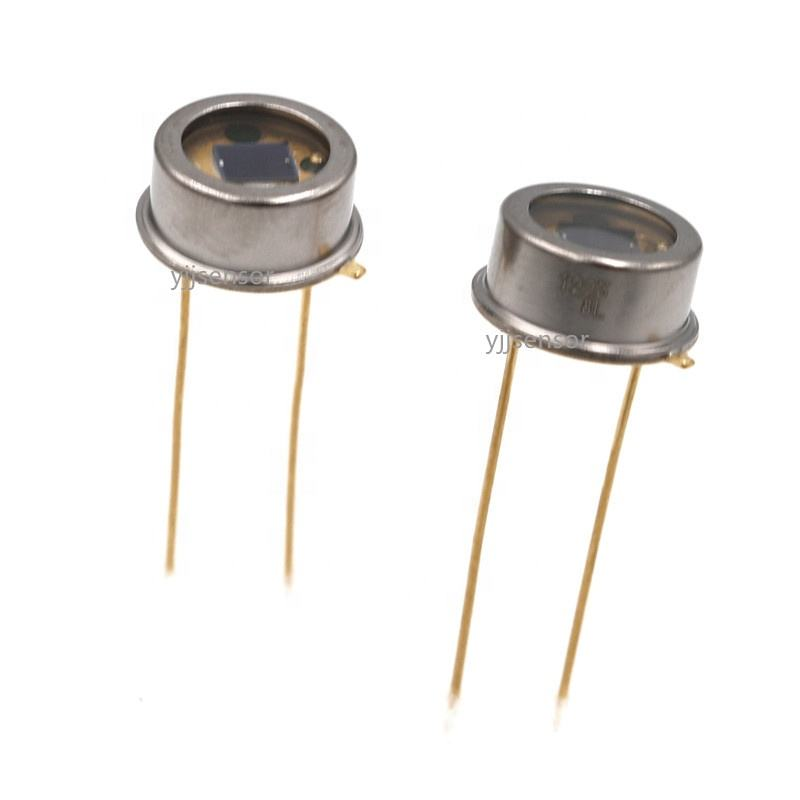

Large Image : S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S1223-01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000pcs/Month

Contact Now

S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry

Description

Photosensitive Area:

3.6 × 3.6 Mm

Package:

Metal

Package Category:

TO-5

Cooling:

Non-cooled

Highlight:

Si PIN photodiode for precision photometry

UV photodiode sensor for near IR

Visible to near IR photodiode sensor

S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry

Features
-High sensitivity in visible to near infrared range
- High reliability
-High-speed response: fc=20 MHz
-Low capacitance

Specification:

Reverse voltage (max.)	30 V
Spectral response range	320 to 1100 nm
Peak sensitivity wavelength (typ.)	960 nm
Photosensitivity (typ.)	0.52 A/W
Dark current (max.)	10000 pA
Cutoff frequency (typ.)	20 MHz
Terminal capacitance (typ.)	20 pF
Noise equivalent power (typ.)	1.3×10-14 W/Hz1/2

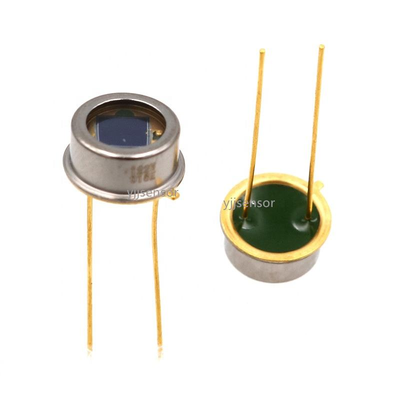

S1223-01 Si PIN Photodiode For Visible to Near IR Precision Photometry 0
