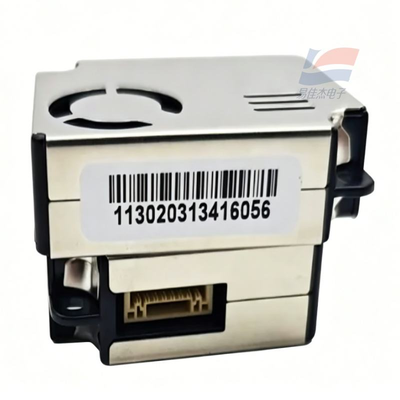

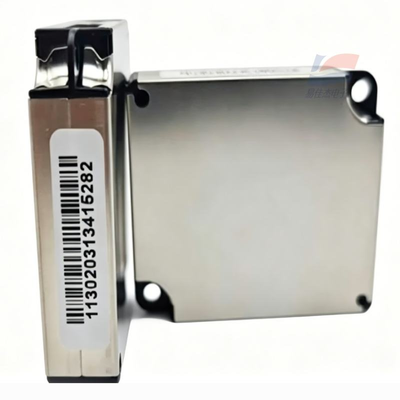

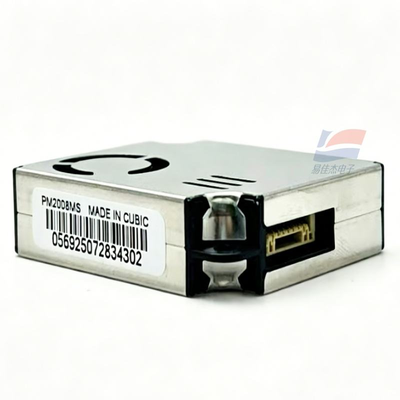

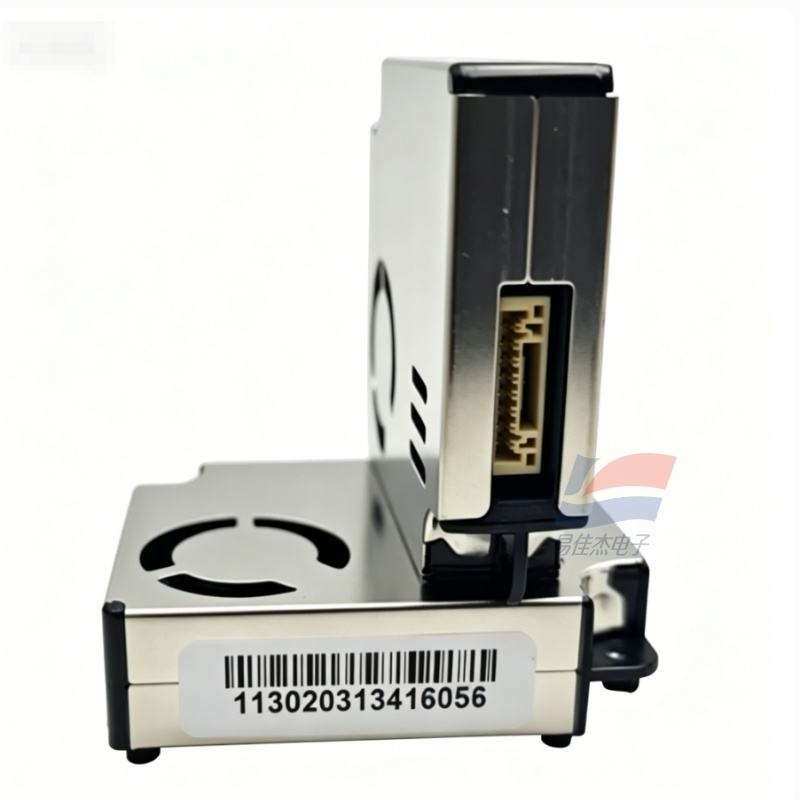

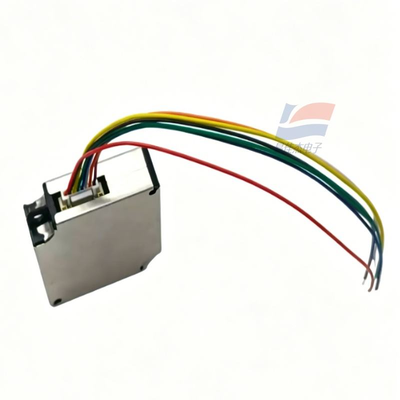

PM2008MS PM2008MSE Laser Scattering Dust PM2.5 Sensor I2C Output

Large Image : PM2008MS PM2008MSE Laser Scattering Dust PM2.5 Sensor I2C Output

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	PM2008MS PM2008MSE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000pcs/Month

Contact Now

PM2008MS PM2008MSE Laser Scattering Dust PM2.5 Sensor I2C Output

Description

Principle:

Laser Light Scattering

Particle Size Detection Range:

0.3–10 μm

Measurement Range:

0–1000 μg/m³

Accuracy:

(25°C/50% RH)

Highlight:

PM2.5 dust sensor I2C output

laser scattering dust sensor PM2008MS

PM2008MSE particulate matter sensor

PM2008MS PM2008MSE Laser Scattering Dust PM2.5 Sensor I2C Output

Typical Applications
* Air purifiers, fresh air systems, air conditioners.
* Indoor air quality monitors, smart home devices.
* Industrial dust monitoring, cleanroom monitoring.

Specification:

Resolution	1 μg/m³
Response time	≤1 s; initial reading ≤8 s
Power supply	DC 5 V ±0.1 V, current ≤100 mA
Output	UART-TTL, I2C, PWM
Dimensions	48×40×12 mm; weight approx. 6 g
Housing	All-metal shielding, high interference resistance
Operating temperature	-10°C to 50°C

PM2008MS PM2008MSE Laser Scattering Dust PM2.5 Sensor I2C Output 0
