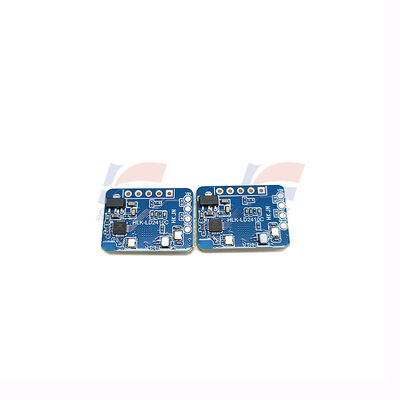

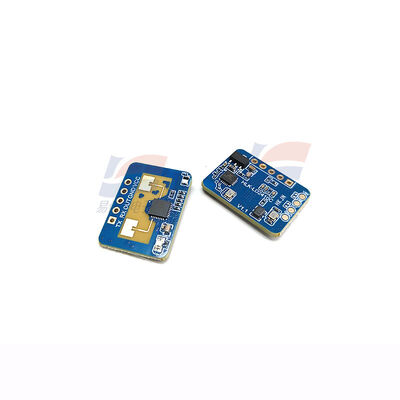

LD2410C High-performance 24GHz FMCW Millimeter-wave Human Presence radar Sensor Module for Intelligent Lighting

                          LD2410C High-performance 24GHz FMCW Millimeter-wave Human Presence radar Sensor Module for Intelligent Lighting

Product Features:

• Static & Dynamic Human Detection: Adopts advanced FMCW radar algorithm, supports detection of human dynamic movement and tiny static micro-movements, solving the blind spot of traditional sensors that cannot detect stationary people.
• Strong Environmental Adaptability: Not affected by ambient light intensity, temperature changes and curtain occlusion, stable detection performance day and night, suitable for all indoor working environments.
• Precision Distance Detection: Supports segmented distance detection with 0.75m high distance resolution; maximum static detection distance reaches 6m, and motion detection distance up to 8m, with adjustable detection range.
• Flexible Parameter Configuration: Supports UART and Bluetooth parameter debugging, users can freely set detection sensitivity, distance threshold, unmanned delay and other parameters to match diverse application scenarios.
• Wide Detection Angle: Provides ±60° wide-angle detection coverage, effectively reducing monitoring dead zones and improving space detection integrity.
• Low Power & High Stability: Low operating current, built-in anti-interference design, effectively resist electromagnetic interference; long service life and ultra-low false trigger rate.
• Multiple Output Methods: Equipped with GPIO high-low level output and UART serial port output, convenient for docking with single-chip microcomputers, smart controllers and various intelligent equipment.
• Compact & Easy Installation: Miniature SMD integrated structure, small size, simple wiring and plug-and-play, no complex debugging required.

Application :

• Smart home human presence induction: intelligent lighting, air conditioner, curtain and household appliance automatic control
• Intelligent building energy saving: office, corridor, classroom, hotel room human body induction and energy-saving control
• Security monitoring and anti-theft: indoor personnel presence detection, unattended area security alert
• Smart toilet, smart cabinet, intelligent furniture automatic induction control
• Industrial indoor personnel monitoring, unattended equipment safety protection
• Elevator human body induction, indoor robot obstacle avoidance and presence detection
