PMS9103M High-precision Digital Universal Particle Sensor for Embedded Integration in Various air Quality Monitoring

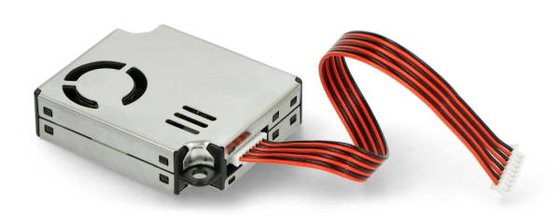

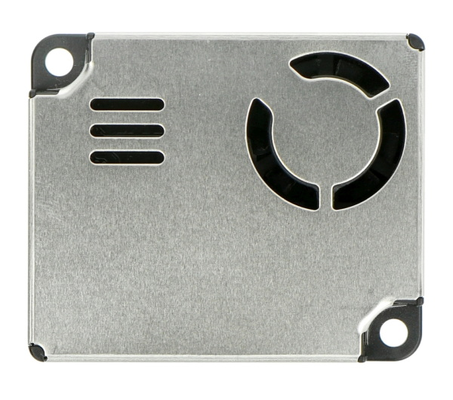

Large Image : PMS9103M High-precision Digital Universal Particle Sensor for Embedded Integration in Various air Quality Monitoring

Product Details:

Place of Origin:	CN
Model Number:	PMS9103M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

PMS9103M High-precision Digital Universal Particle Sensor for Embedded Integration in Various air Quality Monitoring

Description

PM2.5 Effective Measuring Range:	0~500μg/m³	PM2.5 Maximum Measuring Range:	≥1000μg/m³
Mass Concentration Resolution:	1μg/m³	Sampling Volume:	0.1L
Single Response Time:	<1s	Comprehensive Response Time:	<10s
Highlight:	PMS9103M digital particle sensor , universal particle sensor for air quality , embedded air quality monitoring sensor

PMS9103M High-precision Digital Universal Particle Sensor for Embedded Integration in Various air Quality Monitoring

Product Features:

Laser Scattering Detection: Adopts professional laser Mie scattering algorithm, supports precise detection of particles as small as 0.3μm, with ultra-low false alarm rate and stable detection performance.

Multi-particle Size Detection: Simultaneously measures and outputs PM1.0, PM2.5 and PM10 mass concentration data to meet diverse air quality monitoring requirements.

Fast Response & Real-time Output: Single response time less than 1 second, comprehensive response time ≤10 seconds; supports continuous acquisition and automatic switching between stable and fast output modes according to particle concentration changes.

Standard Digital Interface: Equipped with universal TTL UART communication interface (9600 baud rate), compatible with mainstream MCU, Arduino, Raspberry Pi and IoT control systems.

Applications:

Smart home, smart building and indoor environmental monitoring systems
Industrial ambient air quality detection and public area environmental monitoring terminals
IoT environmental monitoring nodes and wearable air quality sensing devices

Mass Concentration Resolution	1	μg/m³
Measurement Consistency (PM2.5)	±10μg/m³ (0~100μg/m³); ±10% (100~500μg/m³)	-
Sampling Volume	0.1	L
Single Response Time	<1	s
Comprehensive Response Time	≤10	s
Working Voltage	4.5~5.5 (Typical 5.0)	V
Working Current	≤100	mA
Standby Current	≤2	mA
Communication Level	Low<0.8V, High>2.7V (3.3V TTL)	V
Working Temperature	-10 ~ +60	℃
Working Humidity	0~95% (Non-condensing)	RH
Storage Temperature	-40 ~ +85	℃
MTBF (Mean Time Between Failures)	≥5	Years
Overall Dimension	48×40×12	mm
