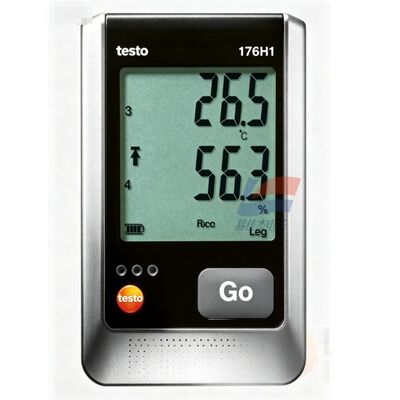

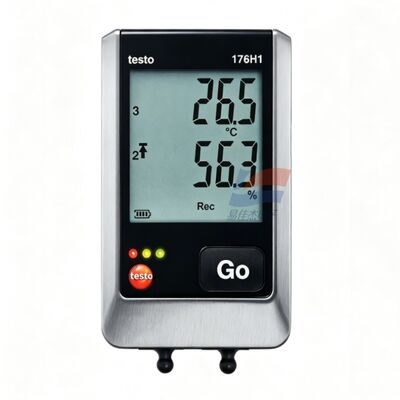

YJJ Testo 176H2/T4/P1 Temperature Humidity Recorder Pressure Measuring Instrument Data Recorder

Product Description:

YJJ Testo 176H2/T4/P1 Temperature and Humidity Recorder Pressure Measuring Instrument Data Recorder

Features:

Model: testo 176 H1
Standard Order Number: 0572 1765
Location: Industrial-grade 4-channel external probe temperature and humidity recorder, capable of simultaneously connecting 2 independent temperature and humidity probes, for dual-point synchronous monitoring; compared to 175H1, it has comprehensive upgrades in storage, battery life, protection, and channels, suitable for long-term compliance warehousing, laboratories, and multi-point environment monitoring in workshops. This is a Techo instrument.
II. Core Hardware Parameters
1. Measurement Sensing Specifications
Channels: 4 channels (can connect 2 external temperature and humidity probes, each probe measures temperature + humidity independently, and collects data at two points simultaneously)
Temperature Sensing: NTC thermistor
Range: -20°C ~ +70°C
Accuracy: ±0.2°C (-20~+70°C core range); other ranges ±0.4°C
Resolution: 0.1°C
Humidity Sensing: External capacitive humidity probe
Range: 0~100% RH (no condensation environment)
Accuracy: Determined by the selected probe, standard probe ±2% RH
Resolution: 0.1% RH
Automatic calculation and storage: dew point Td, wet bulb temperature, absolute humidity g/m³
Recording Interval: 1 second to 24 hours, customizable online real-time measurement starting from 2 seconds
2. Storage and Data Security
Storage Capacity: 2 million sets of measurement data (far exceeding 175H1's 1 million records, capable of continuous recording for several years)
Data Protection: Automatic complete backup of data upon power loss or battery replacement, never lost; supports password lock to prevent tampering
Over-limit Marking: Over-limit data automatically highlighted, quickly locating abnormal periods in reports
Export Method: Mini-USB direct connection to computer + SD card offline copy dual interfaces
3. Power Supply and Ultra-long Battery Life
Battery: 1 TL-5903 disposable lithium battery
Battery Life: Up to 8 years at 25°C, with a 15-minute recording cycle, no need to frequently replace the battery
Low battery screen warning, early indication of battery replacement
4. Body Physical and Protection
Size: 103 × 63 × 33 mm
Weight: 220g
Protection Level: IP65, dustproof, splash-proof water vapor resistant, can be wall-mounted in workshops and humid warehouses for long-term use
Screen: High-definition large-sized LCD, real-time display of dual-point temperature and humidity, dew point, extreme values, battery level, over-limit status
Included Accessories: Standard wall-mounted bracket + anti-theft lock, fixed and cannot be easily disassembled, meeting regulatory compliance requirements for and anti-tampering
Operating Environment: -20°C ~ +70°C; Storage Temperature: -40°C ~ +85°C
5. Supporting Software System
ComSoft Basic (free standard)
Recorder parameter configuration, curve viewing, export of PDF/Excel/CSV inspection reports, meeting routine warehouse traceability requirements
ComSoft Professional (paid)
Batch management of multiple recorders, custom multi-level alarm thresholds, automatic batch generation of inspection reports
ComSoft CFR 21 Part11 (special for pharmaceutical GMP)
Compliant with 21CFR regulations, supports electronic signatures, audit tracking, and data non-tamperability, used for compliance audits of pharmaceutical enterprises and vaccine storage
6. Factory Standard List
Recorder main unit, USB data cable, wall-mounted bracket, anti-theft lock, TL-5903 battery, factory calibration certificate, manual
III. Core Product Advantages
Dual-point 4-channel synchronous monitoring
Can be arranged with 2 independent extension probes, simultaneously monitoring different areas of the warehouse and cold/hot zones in the workshop, one device replacing two single-channel recorders, saving procurement costs.
External Separated Probes The probe is extended through cables and can be inserted into the shelves, equipment cavities, and deep inside the cold storage, without being restricted by the installation location of the main unit. It has good air circulation and responds to temperature and humidity changes much faster than the built-in sensors in the body.
8-year ultra-long battery life
Industrial-grade lithium batteries, which can be installed once and used for many years, significantly reducing the frequency of on-site maintenance.
Ultra-large 2 million data storage capacity
No need to frequently export data, suitable for long-term continuous collection in remote warehouses and unmanned laboratories.
IP65 dustproof and waterproof + anti-theft lock
Can be directly wall-mounted in damp workshops, cold storages, raw material warehouses, and can be used to prevent theft and tampering of records, meeting the official inspection standards of food and supervision, GMP.
Multi-dimensional temperature and humidity calculation
Automatically records dew point and wet bulb values, precisely controls the risks of mold and condensation, suitable for storing cultural relics, electronic components, and wine.
Four. Main application scenarios
1. industry compliance storage (core scenario)
cool storage, vaccine refrigeration storage, biological reagent storage room, hospital pharmacy
Two probes monitor the temperature difference between the upper/lower layers and the entrance/internal of the warehouse throughout the process, trace the temperature and humidity throughout the storage, and are equipped with CFR software to meet GMP and 21CFR regulations for audits
2. Precise raw materials & electronic component warehouses
PCB, sensors, chips, optical components (such as LTH-1550-01) storage, strictly control humidity to prevent oxidation and short circuits; the two probes distinguish the temperature and humidity differences inside and outside the shelves to avoid materials getting damp and being scrapped.
3. Archives, cultural relics, museum exhibition halls
Ancient books, paintings, cultural relic storage rooms, monitor temperature and humidity and dew point, prevent paper cracking and collection mold, provide complete data evidence for cultural tourism supervision inspections.
4. Food, tobacco, wine constant temperature storage
Wine, tea, tobacco, dairy product raw material warehouses, monitor the temperature and humidity at the corners and the center of the warehouse at two points, stabilize the storage environment, avoid product deterioration and loss.
5. Industrial workshops & laboratories
Precision processing workshops, high and low temperature test chambers, quality inspection laboratories, two probes simultaneously collect the temperature and humidity in the production area and the raw material storage area, retain production environment quality inspection records.
6. Building HVAC operation and maintenance
Office building machine rooms, clean workshops, monitor the operation effect of air conditioners, compare the temperature and humidity in different indoor areas, optimize ventilation and energy-saving renovation analysis.

Specifications:
