Product Details:
|
| Operating Temperature: | -10℃ ~ +50℃ | Storage Temperature: | -10℃ ~ +50℃ |
|---|---|---|---|
| Operating Humidity: | 0 - 80% RH | Maximum Operating Altitude: | 2000m |
| EMC Standard: | IEC61326-1, CISPR11 | Main Unit: | 130 × 63 × 38 Mm |
| Photo Sensor Probe: | 80 × 55 × 29 Mm | Overall Weight: | 220 G |
| Highlight: | Fluke 941 digital lux meter,portable light intensity tester,lux meter 200000 range |
||
Product Description:

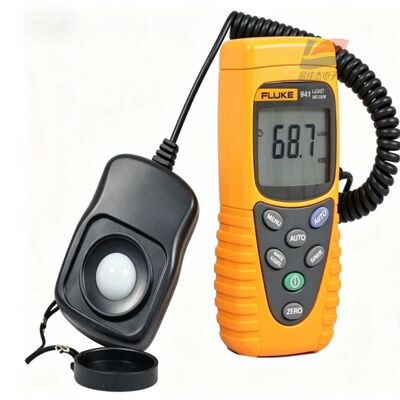

YJJ Fluke 941 Digital Lux Meter 200000 Lux Range Portable Light Intensity Tester Suitable for HVAC and Industrial Lighting
Features:
Core technical parameters
Measurement range: 0 - 200,000 Lux; 0 - 20,000 FC (Foot-candle)
Measurement mode: One-click switch between Lux and FC units
Sensor: External separate photopic sensor, which can extend measurement time and avoid instrument blocking of light
Accuracy: ±5% reading ±10 digits
Spectral response: Compliant with CIE human visual function standard
Functions: Data hold HOLD, automatic shutdown, low battery indication
Display: LCD digital display
Power supply: 9V battery
Portability of the body: Handheld design
Applicable scenarios
HVAC system inspection, factory industrial lighting, illumination detection in clean rooms, indoor lighting acceptance in buildings, office light source inspection, laboratory light test, agricultural plant light measurement, commercial lighting debugging in shops
Specifications:
| Measurement range |
0 - 200,000 Lux;
|
| Temperature | -40℃ ~ +80℃ |
| Response time | 50ms |
| Operating environment | 5 - 45℃ |
| Power supply | 9V square battery |
![]()
