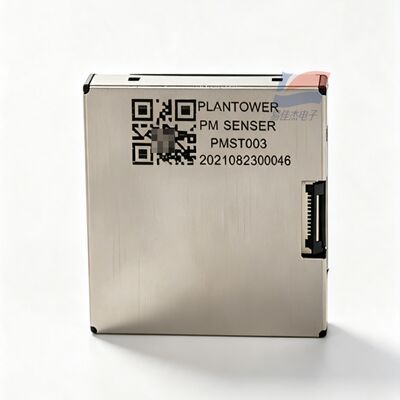

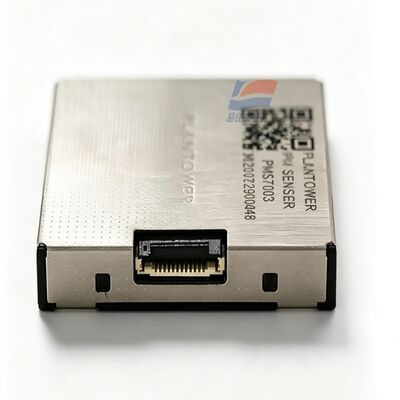

PMST003 Laser Scattering PM Sensor TTL-UART Serial Output Built-in Fan

PMST003 Laser Scattering PM Sensor TTL-UART Serial Output Built-in Fan
PMST003 Laser Scattering PM Sensor TTL-UART Serial Output Built-in Fan PMST003 Laser Scattering PM Sensor TTL-UART Serial Output Built-in Fan PMST003 Laser Scattering PM Sensor TTL-UART Serial Output Built-in Fan

Large Image :  PMST003 Laser Scattering PM Sensor TTL-UART Serial Output Built-in Fan

Product Details:
Place of Origin: China
Brand Name: Plantower
Model Number: PMST003
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Package
Delivery Time: 3-5Workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000pcs/Month
Contact Now

PMST003 Laser Scattering PM Sensor TTL-UART Serial Output Built-in Fan

Description
Measurement Principle: Laser Scattering Detectable Particle Sizes: 0.3–1.0 μm, 1.0–2.5 μm, 2.5–10 μm
Minimum Resolvable Particle Size: 0.3 μm PM2.5 Effective Range: 0–1000 μg/m³
Highlight:

Laser scattering PM sensor with TTL-UART

,

PM sensor with built-in fan

,

Serial output PM sensor

PMST003 Laser Scattering PM Sensor TTL-UART Serial Output Built-in Fan



Laser scattering PM sensor featuring an ultra-slim 6.4mm profile, six-sided metal shielding for EMI resistance, a built-in fan, and TTL-UART serial output; outputs PM1.0/PM2.5/PM10 mass concentrations and particle counts for various sizes—ideal for portable devices, air quality monitors, and air purifiers.



Key Features
*Six-sided metal shielding for EMI resistance; suitable for industrial or portable devices
*Ultra-thin profile, space-efficient for internal device integration
*Continuous sampling with fast response; direct digital serial output—no complex signal processing required
*Simultaneous output of standard atmospheric concentration and particle count data



Specification:

Resolution
 1 μg/m³
Accuracy ±10% @ 100–500 μg/m³; ±10 μg/m³ @ 0–100 μg/m³
Power Supply 5 V
Interface 3.3V TTL UART
Operating Temperature -10 to +60 ℃
Operating Humidity 0–95% RH (non-condensing)
Dimensions 38 × 35 × 6.4 mm
MTTF ≥20,000 h


PMST003 Laser Scattering PM Sensor TTL-UART Serial Output Built-in Fan
