PMS1003 Laser Particulate Matter Sensor Laser Mie Scattering TTL Serial Output

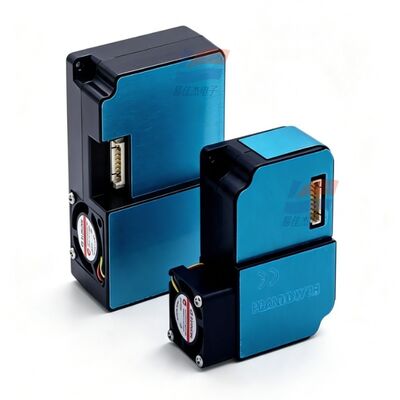

Large Image : PMS1003 Laser Particulate Matter Sensor Laser Mie Scattering TTL Serial Output

Product Details:

Place of Origin:	China
Brand Name:	Plantower
Model Number:	PMS1003

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000pcs/Month

Contact Now

PMS1003 Laser Particulate Matter Sensor Laser Mie Scattering TTL Serial Output

Description

Particle Size Ranges:

0.3–1.0 μm, 1.0–2.5 μm, 2.5–10 μm

Counting Efficiency:

50% @ 0.3 μm; 98% @ ≥0.5 μm

PM2.5 Effective Range:

0–500 μg/m³; Maximum ≥1000 μg/m³

Resolution:

1 μg/m³

Highlight:

PMS1003 laser particulate sensor

Mie scattering PM sensor

TTL serial output PM sensor

PMS1003 Laser Particulate Matter Sensor Laser Mie Scattering TTL Serial Output

Principle: Laser Mie scattering; outputs particle counts and PM1.0/PM2.5/PM10 mass concentrations; TTL serial output.

Specification:

Accuracy	±10 μg/m³ (0–100); ±10% (100–500)
Power Supply	5V (4.5–5.5V)
Operating Current	≤100mA; Standby ≤200μA
Interface Level	TTL-3.3V (5V cannot be connected directly to I/O)
Serial Port	9600-8N1, 32-byte data packet
Response Time Overall	<10s
Temperature/Humidity	-10 to +60°C, 0–95% RH (non-condensing)
Dimensions	65 × 42.3 × 23 mm
MTTF	≥3 years

PMS1003 Laser Particulate Matter Sensor Laser Mie Scattering TTL Serial Output
