YJJ PMS3003 Laser PM2.5 PM10 Dust Sensor UART Digital Particle Detection Module

Product Description:

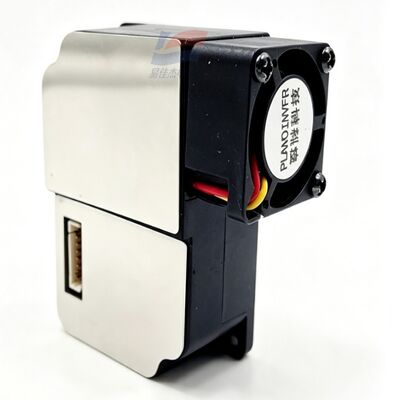

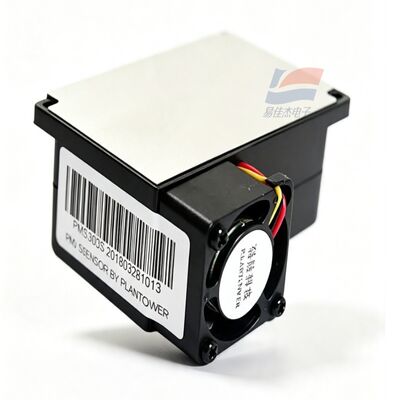

YJJ PMS3003 Laser PM2.5 PM10 Dust Sensor UART Digital Particle Detection Module

Features:

I. Product Introduction

PMS3003 is the third-generation laser scattering type dust sensor, equipped with a miniature air intake fan; it outputs PM1.0, PM2.5, PM10 mass concentrations and the number of particles of multiple sizes via TTL-UART serial port. Compared with PMS1003, it has improved anti-interference and stability, with a metal shielding shell, suitable for indoor and outdoor air quality equipment development.

II. Complete Technical Parameters

Table

Parameter Item Specification Details

Detection Principle Laser Mie Scattering

Particle Size Range 0.3 - 1.0 μm, 1.0 - 2.5 μm, 2.5 - 10 μm

Particle Counting Efficiency 50% @ 0.3 μm; 98% ≥ 0.5 μm

PM2.5 Standard Range 0 - 500 μg/m³

Overload Measurement Upper Limit ≥ 1000 μg/m³

Concentration Resolution 1 μg/m³

Measurement Accuracy 0 - 100 μg/m³: ± 10 μg/m³; 100 - 500 μg/m³: ± 10% FS

Single Sampling Response < 1s; Overall Stable Response ≤ 10s

Sampling Air Flow Rate 0.1 L/min

Power Supply Voltage DC 4.5 - 5.5V, typical 5V

Normal Working Current ≤ 100mA

Sleep Standby Current ≤ 200μA

Communication Interface TTL-UART, Baud Rate 9600, 3.3V Level, Supports Active/Passive Read Mode

Operating Temperature -10℃ ~ +60℃

Storage Temperature -40℃ ~ +85℃

Operating Humidity 0 - 95% RH (No Condensation)

Dimensions 65 × 42.3 × 23 mm

Mean Time Between Failures ≥ 5 Years

III. 8Pin Pinout Definition

VCC: 5V Power Supply

GND: Ground

SET: Mode Pin; High Level = Continuous Sampling, Low Level = Sleep Power Saving

RXD: Sensor Serial Port Receive

TXD: Sensor Serial Port Transmit

RESET: Module Reset Pin

7, 8. Unused Pins

IV. Product Advantages

Third-generation main control chip, smaller long-term drift, superior resistance to cooking oil and water vapor interference than PMS1003

Supports sleep low power consumption, suitable for battery-powered portable detectors

Can output two sets of data: original particle quantity and standard CF calibrated PM concentration

Metal shielding shell, isolates circuit board electromagnetic interference

V. Industry Application Purposes

Air Purifiers, Fresh Air Systems, Central Air Conditioning Ventilation Dust Monitoring Probe

Home/Commercial PM2.5 Air Quality Detector, Haze Alarm

Construction Dust Monitoring Probe, Workshop, Factory, Breeding House Air Monitoring Terminal

Smart Home, Building Ventilation Automatic Control System

Vehicle Air Detector, Portable Outdoor Environmental Detection Equipment

Power Inverter, Electrical Control Cabinet, Greenhouse Greenhouse Particulate Matter Monitoring
