YJJ PMS9103M Laser PM2.5 PM10 Dust Sensor UART Digital Air Particulate Detection Module

Product Description:

YJJ PMS9103M Laser PM2.5 PM10 Dust Sensor UART Digital Air Particulate Detection Module

Features:

I. Product Introduction

The PMS9103M is a new ultra-thin laser scattering particulate matter sensor with a thickness of only 12mm. It has a full-metal six-sided shielding shell. It is equipped with a micro suction fan and has TTL-UART digital output. It can detect particles with diameters ranging from 0.3 to 10μm, and outputs the mass concentrations of PM1.0/PM2.5/PM10. It features a lightweight and compact design, strong resistance to electromagnetic interference, and is suitable for portable devices and small air quality detectors.

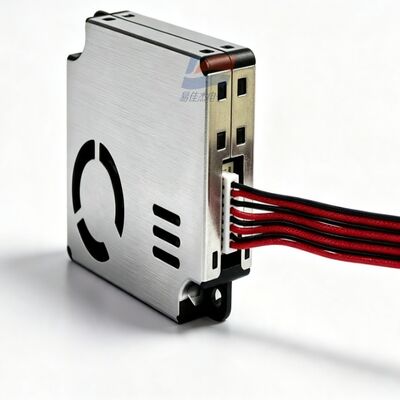

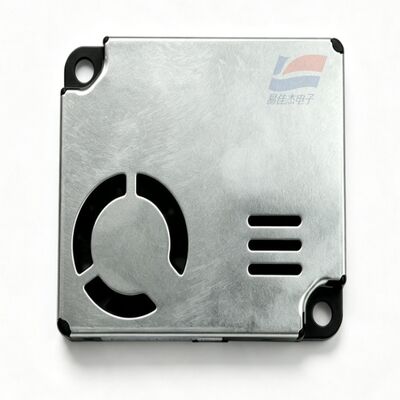

Sensor Appearance

II. Complete Technical Parameters

Detection Principle: Laser Mie Scattering

Particle Size Range: 0.3~1.0μm, 1.0~2.5μm, 2.5~10μm

Particle Counting Efficiency: 50% at 0.3μm; 98% at ≥0.5μm

PM2.5 Standard Measurement Range: 0 - 500μg/m³

Overload Range: 0 - 1000μg/m³

Concentration Resolution: 1μg/m³

Measurement Accuracy: ±10μg/m³ for 0 - 100μg/m³; ±10%FS for 100 - 500μg/m³

Single Response Time: ≤1s; Whole Machine Stable Response ≤10s

Single Sampling Air Volume: 0.1L

Standard Power Supply: DC5V (4.5 - 5.5V)

Working Peak Current: ≤100mA

Sleep Standby Current: ≤200μA

Communication Interface: TTL-UART, 9600 baud rate, 3.3V level, active upload / passive inquiry dual mode

Operating Temperature: -10℃ ~ +60℃

Storage Temperature: -40℃ ~ +80℃

Operating Humidity: 0 - 95% RH, no condensation allowed

Overall Size: 48 × 40 × 12 mm (ultra-thin body)

Mean Time Between Failures: ≥15000 hours

Shell Structure: Metal full shielding, strong resistance to electromagnetic interference and oil smoke interference

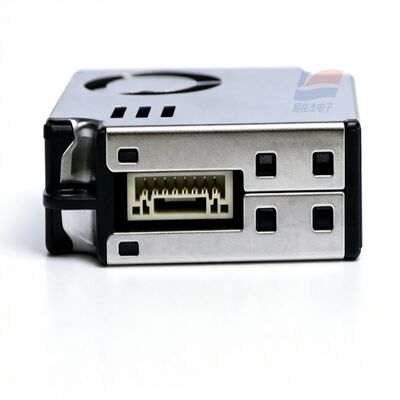

III. 8Pin Pinout

VCC: +5V Power Supply

GND: Power Supply Negative Terminal Ground

SET: Mode Pin; High level = continuous sampling; Low level = sleep mode and power saving

RXD: Sensor Serial Port Reception (3.3V)

TXD: Sensor Serial Port Transmission (3.3V)

RESET: Low level hardware reset pin

7, 8. NC Spare Pins

IV. Core Product Advantages

Ultra-thin 12mm thickness, suitable for narrow spaces and built-in in portable devices

Six-sided metal shielding shell, stable detection in complex electromagnetic environments

Supports low-power sleep mode, friendly for portable detectors powered by lithium batteries

Can output raw particle count data + calibrated PM concentration parameters

Minimum capable of capturing 0.3μm ultra-fine particles, excellent sensitivity

V. Industry Applicable Uses

Small desktop air quality detectors, handheld portable air quality probes

Miniature air purifiers, built-in dust probes for vehicles

Smart home risk control controllers, small modules for ventilation equipment

Dust monitoring in greenhouses, electrical control cabinets, charging piles, instrument cases

Wearable environmental detection devices, ultra-thin environmental monitoring terminals
