Testo174H Mini Temperature And Humidity Data Logger USB-C PC Version

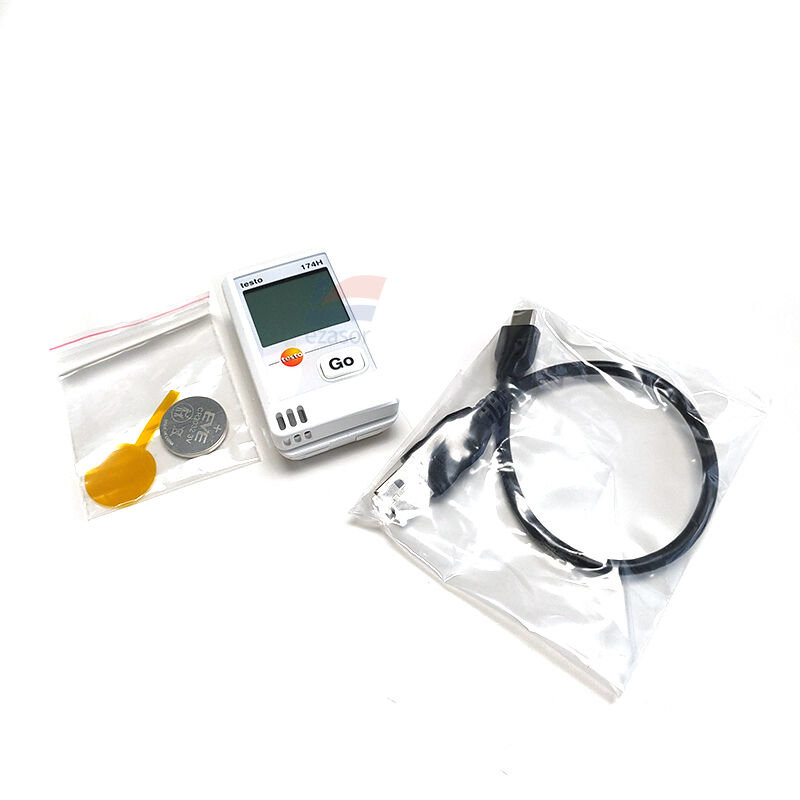

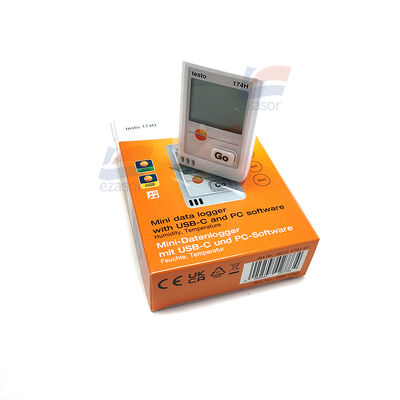

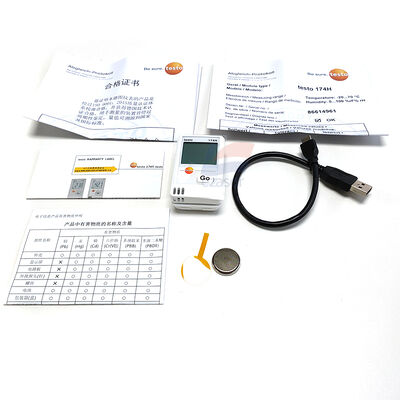

Large Image : Testo174H Mini Temperature And Humidity Data Logger USB-C PC Version

Product Details:

Place of Origin:	Germany
Brand Name:	Testo
Model Number:	Testo174H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1000pcs/Month

Contact Now

Testo174H Mini Temperature And Humidity Data Logger USB-C PC Version

Description

Temperature:

-20 To +70°C; Accuracy ±0.5°C; Resolution 0.1°C

Humidity:

0 To 100% RH; Accuracy ±3% RH (in The 2–98% RH Range); Resolution 0.1% RH

Storage:

Up To 16,000 Sets Of Temperature And Humidity Records

Sampling Interval:

Customizable From 1 Minute To 24 Hours

Highlight:

Testo174H mini temperature logger USB-C

humidity data logger PC version

temperature humidity sensor with warranty

Testo174H Mini Temperature And Humidity Data Logger USB-C PC Version

Key Features

1. Real-time on-screen display of current temperature and humidity, with alarms for limit violations.
2. Direct USB-C connection to PC for configuration and data retrieval via ComSoft Basic software; supports export of compliant Excel/PDF reports—ideal for GMP and warehousing audits.
3. One-touch recording start; compact design suitable for wall mounting.

Typical Applications

- Indoor temperature and humidity monitoring for warehouses, archives, laboratories, and cleanrooms
- Storage and short-distance cold chain transport for food,and electronic components
- HVAC system commissioning and long-term environmental temperature and humidity logging for compliance/verification

Specification:

Power supply	2 × CR2032 lithium coin cells; battery life of approximately 1 year (at 25°C with a 15-minute sampling interval)
Dimensions / Weight	60 × 38 × 18.5 mm, approx. 34g
Ingress protection	IP20 (indoor, dry environments only)
Data security	Automatic data backup during battery replacement or low-battery conditions; no data loss

Testo174H Mini Temperature And Humidity Data Logger USB-C PC Version
