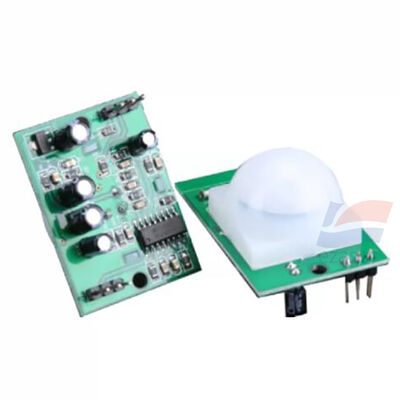

YJJ ZRD-09 Pyroelectric IR Detector Module 4~8m Sensing Distance for Indoor Human Motion Detection

Product Description:

YJJ ZRD-09 Pyroelectric Infrared PIR Motion Sensor Module 5~20V Wide Voltage Adjustable Delay for Human Induction Light

Features:

ZRD09 (ZRD-09) Thermopile Infrared PIR Sensor Module Parameter Description

Principle: Thermopile effect, integrated PIR sensitive element + dedicated signal processing chip + Fresnel lens, **analog level output**, human movement detection, wide voltage supply, supports two trigger modes, built-in light-sensitive control reserved circuit, mostly used for human detection lights, security alarms

Core Detection Parameters

- Detection Wavelength: 5~14 μm (human infrared band)
- Sensing Distance: 4~8m (adjustable, dependent on Fresnel lens)
- Sensing Angle: 100° (determined by lens)
- Output Level: High level 3V, low level 0V
- Delay Time: 3~300s adjustable continuously (time for output to remain after human leaves)
- Lockout Time: Default 4s (4s after triggering, to prevent false triggering)
- Trigger Mode: **Repeatable Trigger / Non-repeatable Trigger (selected by pin configuration)**

Electrical Parameters

- Supply Voltage: **DC 5V ~ 20V** (wide voltage)
- Static Current: ≤ 65μA @ 5V, low power consumption
- Output Type: High and Low Levels (TTL compatible)

Environmental and Mechanical Parameters

- Operating Temperature: **-10℃ ~ +70℃**
- Dimensions: 32 × 24 × 24 mm
- Fresnel Lens: Default diameter 23mm
- Operating Humidity: 15~90% RH (no condensation)

Product features

1. Wide voltage range of 5~20V supply, suitable for DC power supply and adapter power supply scenarios
2. Two trigger modes are available, meeting the logic requirements of different products
3. Delay time can be adjusted, suitable for scenarios such as induction lights and automatic switches
4. Reserved photosensitive control circuit (optional, no photosensitive resistor is soldered at factory), enabling non-triggering during the day and sensing at night
5. Integrated module, equipped with Fresnel lens, directly assembled for use, development is simple
6. Low static current, reducing the overall power consumption of the device

Typical application

1. Human body sensing lights, sensing switches, corridor sensing lighting
2. Infrared intrusion alarm devices, security human body detection equipment
3. Smart home, IoT human body sensing terminals
4. Automatic doors, automatic household appliance sensing control
5. Human body sensing toys, industrial automation human body detection

Specifications:
