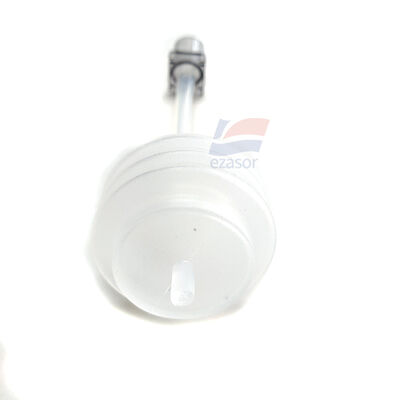

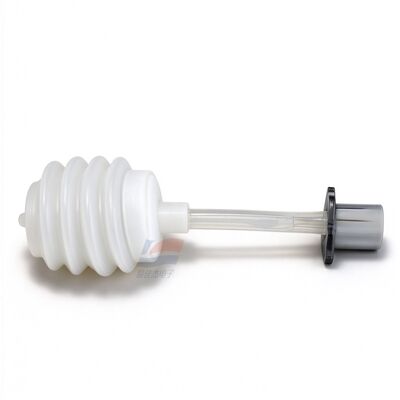

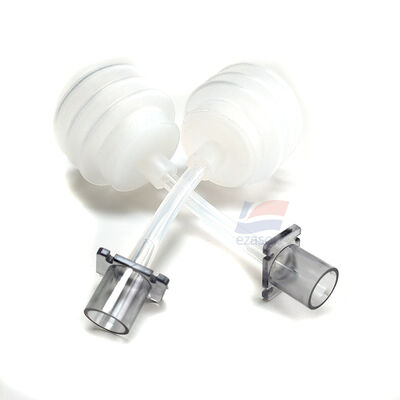

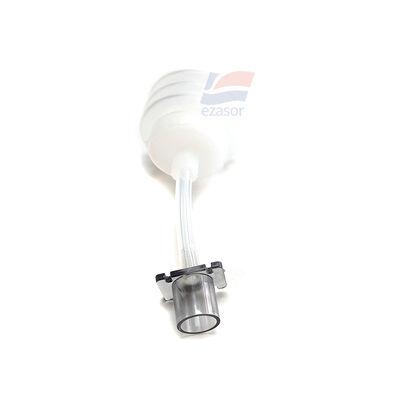

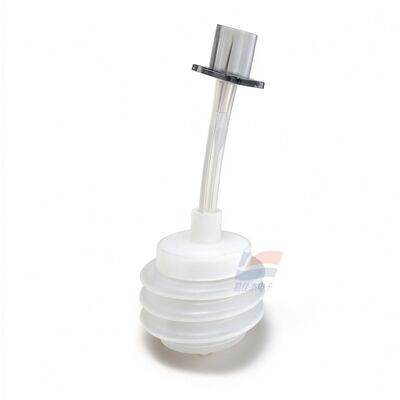

YJJ PN-3002-03 Neonatal Test Lung for Ventilator Calibration & Respiratory Training

Product Description:

YJJ PN-3002-03 Neonatal Test Lung for Ventilator Calibration & Respiratory Training

Features:

Used for testing, calibration and teaching of ventilators and anesthesia machines; passive silicone sheet-like simulated lungs, **0.06L (60mL) for newborns**; in the same series: PN-3002-01 (1L for adults), PN-3002-04 (0.5L for children)

Core parameters

- Model: **PN-3002-03**
- Volume: **0.06 L (60 mL) Newborn Simulation Lung**
- Interface: **15mm standard conical connector (common for breathing circuits)**
- Material: Medical silicone, **latex-free**, reusable and sterilizable at high temperatures and pressures
- Sterilization method: **121℃, 20 minutes high-pressure steam sterilization**
- Tolerance cycles: Up to approximately 20 sterilization cycles, replacement required after aging
- Registration certificate: National Medical Device Registration No. 20242080023
- Usage: For ventilator of newborns, CPAP, airway testing of infant resuscitation equipment, self-check of equipment, teaching demonstrations
- Working principle: Passive clamp spring structure, simulating lung compliance, **unadjustable resistance / compliance (fixed characteristics)**

Physical and usage parameters

- Applicable tidal volume range: **5~60 mL**, compatible with premature infants / full-term newborns
- Maximum tolerance pressure: ≤ 60 cmH2O
- Operation: Directly connect to the breathing circuit, observe expansion and contraction, used for verifying tidal volume, pressure, PEEP
- Cleaning and disinfection: Rinse with water + ultrasonic cleaning with medical cleaning agent, dry and then sterilize; do not immerse in alcohol for a long time
- Storage: At room temperature, protected from light, avoid puncturing the silicone membrane by sharp objects
- Weight: Approximately 45g

Model differentiation (PN-3002 series)

- PN-3002-01: Adult 1L
- PN-3002-04: Child 0.5L
- PN-3002-03: Newborn 0.06L
