Product Details:
|
| Repeatability & Hysteresis: | ±0.15 | The Reaction Time: | 10ms |
|---|---|---|---|
| The Input Impedance: | 5.0K | Output Impedance: | 5.0K |
| The Weight Of The: | 2g | ||
| Highlight: | 24PCAFA6G Pressure Sensor,Differential Pressure Sensor,22/24/26PC Pressure Sensor |
||
Product Description:

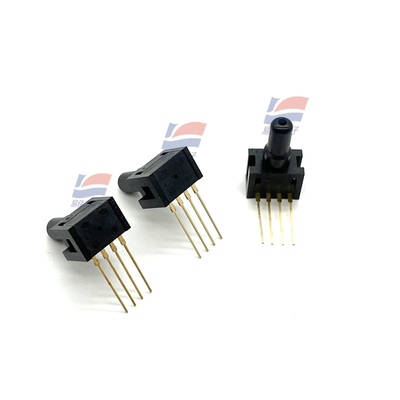

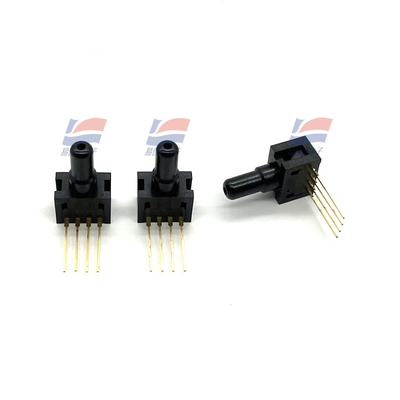

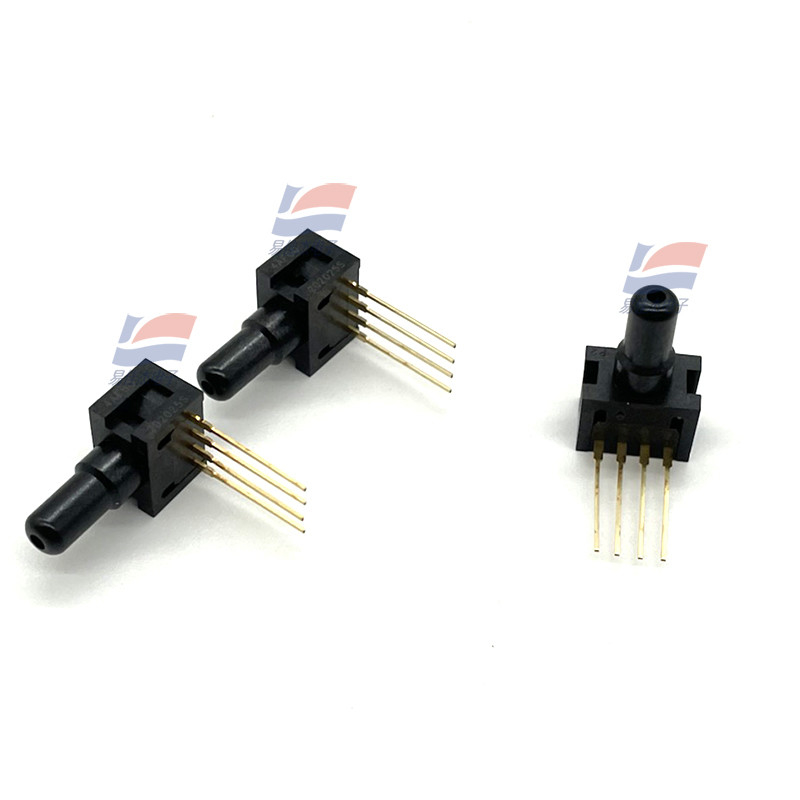

24PCAFA6G Pressure Sensor 22/24/26PC Series Meter And Differential
Features:
GAGE SENSOR
Pressure is applied to port P2. Port P1 vents to ambient pressure
Mounting Dimensions (for reference only)
1 x 4 Termination (Style 1), Straight Port (Style A)
Pin 1 is notched, and is shown at the right of the package. Pin 2 is next to Pin 1, etc.
20PC SERIES CIRCUIT - NOTES
1. Circled numbers refer to Sensor
Terminals (interface pins).
2. VO increases with pressure change.
3. VO J V2 - V4
4. Pin 1 designated with a notch.
Pin Designation
Pin 1J Vs (+)
Pin 2 J Output (+)
Pin 3 J Ground (-)
Pin 4 J Output (-)
Specifications:
| power supply | 10-12VDC |
| Zero offset | -30- +30 mV |
| Zero drift, 0-25 ˚C, 25-50 ˚C | ±2.0 mV |
| Linearity, P2 & gt; P1, best fitting line | ±0.25 -±10 % full scale |
| sensitivity is warm,25 ˚C to 0˚C,25 ˚C to 50˚C | ±5.0 full scale |
