Product Details:
|
Pressure Sensitive Chip: | Silicon Material | Lead: | Gold Wire |
---|---|---|---|

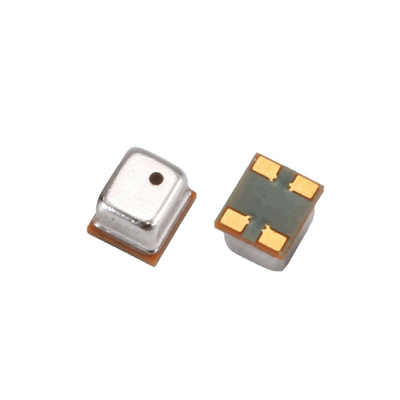

Packaging Case: | PCB Substrate And Metal Cover Plate | Pin: | Gold Plated |
Net Weight: | About 0.1g | ||
Highlight: | XGZP131 Electronic Pressure Sensor,Electronic Pressure Sensor 15V DC,Gauge Pressure Sensor 2000 kPa |
Product Description:

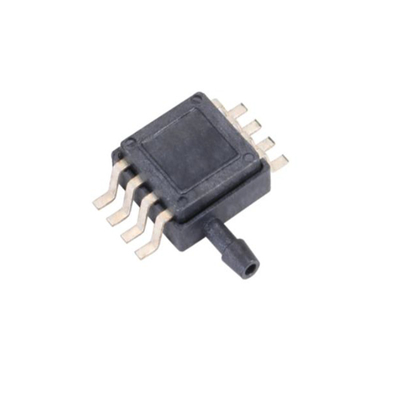

XGZP131 Pressure Sensors Are Used For Pressure Instruments
Features:
Benchmark conditions
(4) Measurement medium: air
medium temperature :(25±1) ℃
(4) ambient temperature :(25±1) ℃
Vibration: 0.1g(1m/ S2)Max
(3) humidity :(50%±10%) RH
power supply :(5±0.005) V DC
The basic parameters
Parameter Minimum Typical value Maximum value unit
Standard range 100, 700, 2000 kPa
Constant voltage supply 5 15 V
Constant current supply 1 3 mA
Operating temperature -30 +125 ℃
Storage temperature -40 +150 ℃
Bridge arm resistance 4, 5, 6 kω
Zero output: -30 30 mV
Full scale output: 60 120 mV
Bridge resistance temperature error 1800 2400 3000 PPM /℃
Zero temperature error -0.06 ±0.03 0.06 %FS/℃
Full scale temperature error -0.25-0.21-0.17%fs /℃ Constant voltage supply
Nonlinearity -0.3 ±0.15 0.3%Fs
Hysteresis -0.3 ±0.15 0.3%fs
Specifications:
Power supply | ≤15V DC or ≤3.0mA DC |
Input impedance | 4K to 6 kω |
Output impedance | 4K to 6kω |
Insulation resistance | 100mω,100VDC |
Allowed overload | 1.5 times full scale |
End (4) Bursting pressure | ≥2 times full scale |
