Product Details:
|
Power Supply: | 5VDC | Pressure Range: | 0--1PSI-- 500PSI |
---|---|---|---|
Output Signal: | 0.5-4.5 VDC | Operating Temperature: | -45℃- 125℃ |
Temperature Compensation: | -40℃- 85℃ | ||
Highlight: | 4040PC100G5D Electronic Pressure Transmitter,Electronic Pressure Transmitter Trigger Interface,MEMS Pressure Transducer |
Product Description:

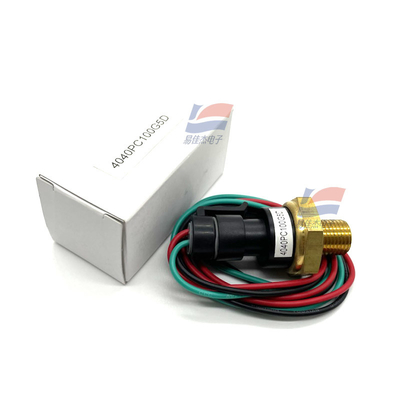

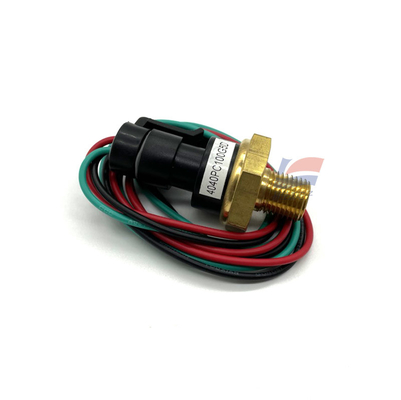

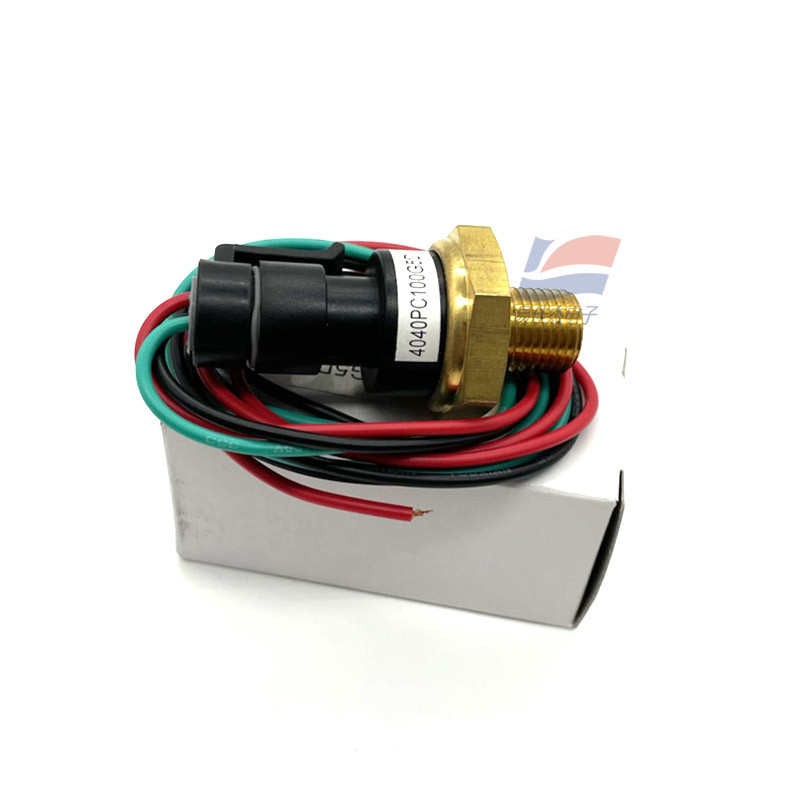

4040PC100G5D 0-1PSI-500PSI Trigger Interface Pressure Sensor
Features:
4040PC series products, output 0.5-4.5V output, temperature compensation range -40℃ to 85℃.
Features of this product:
1. Minimum volume sensor with amplified signal.
2. Complete signal conditioning.
3. Operating temperature -45 to 125 degrees.
4. Silicon piezoresistive technology.
5. Media compatibility.
The sensor works at a voltage of 5V, and the output variation range is 4V. Accuracy is 0.2% at room temperature. Threaded interface can be customized to customer requirements. Standard interface is g1/4. This product is available in 1,15,100,150,250,500 PSI range
Specifications:
Pressure form | gauge pressure (G) |
Pressure interface | G1/4 (customized according to customer requirements) |
Product accuracy | 0.25% |
Pin | DIP-6 |
Features | Small size with magnification |
