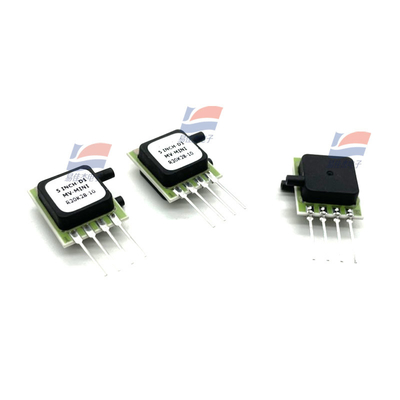

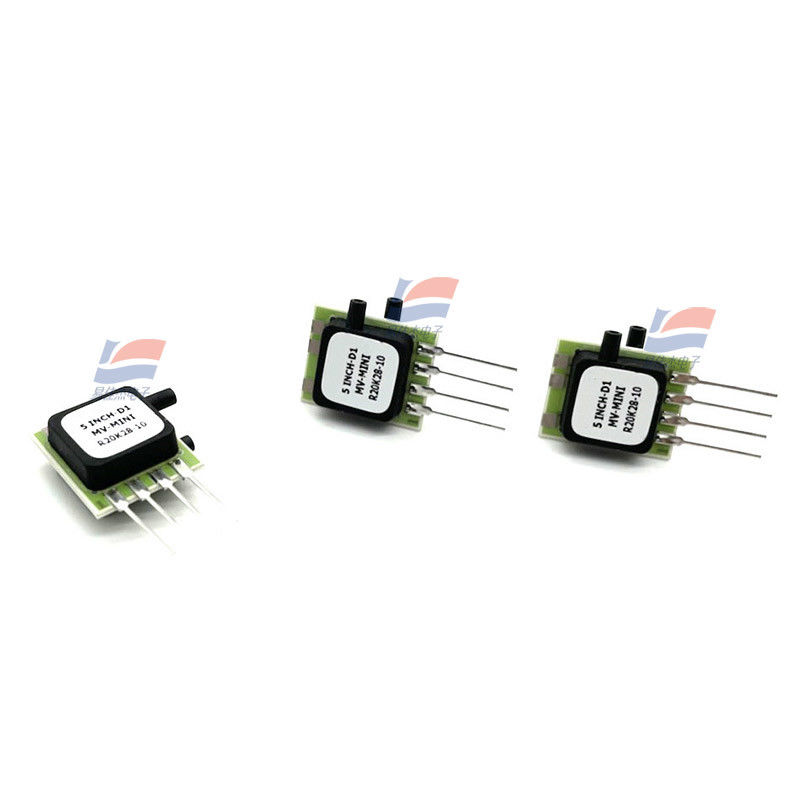

5 INCH-D1-MV-MINI Amplified MEMS Based Pressure Sensor Linear Output with Amplitude Correction

I'm Online Chat Now

5 INCH-D1-MV-MINI Amplified MEMS Based Pressure Sensor Linear Output with Amplitude Correction

5 INCH-D1-MV-MINI Amplified MEMS Based Pressure Sensor Linear Output with Amplitude Correction
5 INCH-D1-MV-MINI Amplified MEMS Based Pressure Sensor Linear Output with Amplitude Correction 5 INCH-D1-MV-MINI Amplified MEMS Based Pressure Sensor Linear Output with Amplitude Correction

Large Image :  5 INCH-D1-MV-MINI Amplified MEMS Based Pressure Sensor Linear Output with Amplitude Correction

Product Details:
Place of Origin: United States
Brand Name: AllSensors
Model Number: 5 INCH-D1 MV-MINI
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: In tray
Delivery Time: 3-5work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 911/pcs/pre

5 INCH-D1-MV-MINI Amplified MEMS Based Pressure Sensor Linear Output with Amplitude Correction

Description
Working Pressure Range: 0.0 To 0.1806 Psi (0.0 To 0.1271 M H2O) Pressure Type: Differential Pressure
Measurement Techniques: Others Measurement Medium: Gas
Package: Plastic Seal
Highlight:

5 INCH-D1-MV-MINI MEMS Based Pressure Sensor

,

MEMS Based Pressure Sensor Amplitude Correction

,

Amplified Pressure Sensor linear output

Product Description:

5 INCH-D1 MV-MINI Pressure Sensor With Amplifying Zero Position And Amplitude Correction



Features:

Pressure sensor with amplified zero and amplitude correction millivolt output, based on proprietary technology, 5inCH-D1-MV-Mini to reduce all output offsets or common-mode errors. The model provides a calibrated millivolt output with superior output offset characteristics. Compared with the traditional compensation, the output offset error, preheating stability, long time stability and position sensitivity are reduced due to temperature variation. In addition, the sensor employs a silicon, micromechanical, stress concentrated reinforced structure to provide a very linear output for measuring pressure. These calibrated and temperature compensated sensors provide stable output over a wide range of temperatures. This series is suitable for non-corrosive, non-ionic working fluid, such as air, dry gas, etc. The output of the device is proportional to the supply voltage, and any operation with a DC supply voltage up to +16 V is acceptable

Specifications:



Output signal analog voltage
Features with temperature compensation
Operating temperature -13 to 185 F (-25 to 85 C)
Type of pressure Differential
Product Category Pressure Sensors
