26PC01SMT Board Mount Pressure Sensor Differential Electronic SMT 26PC Series

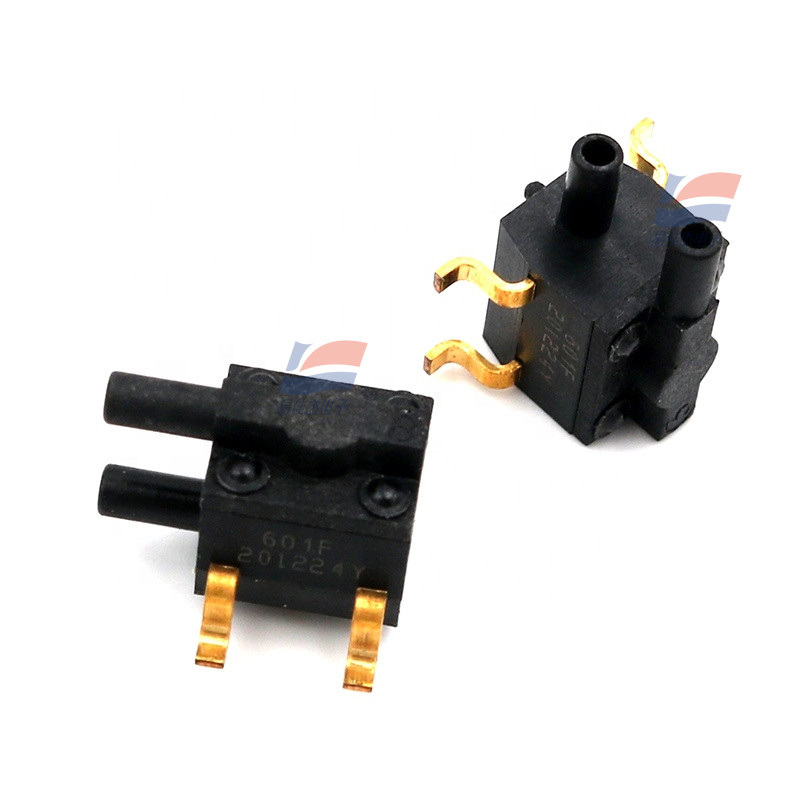

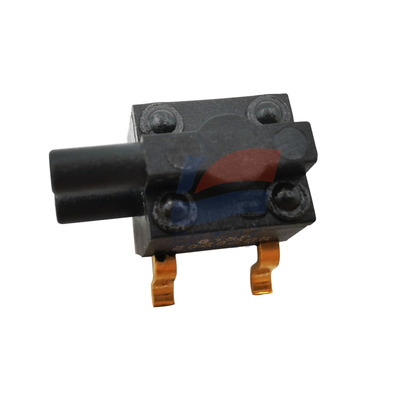

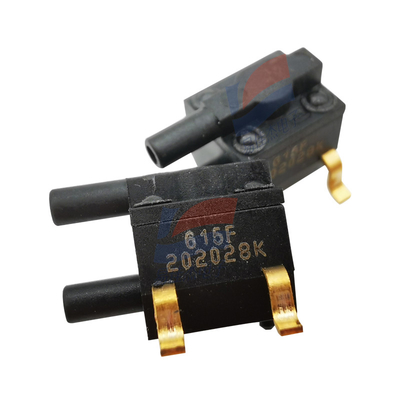

Large Image : 26PC01SMT Board Mount Pressure Sensor Differential Electronic SMT 26PC Series

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	26PC01SMT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

26PC01SMT Board Mount Pressure Sensor Differential Electronic SMT 26PC Series

Description

Pressure Type:

Vacuum, Gauge, Differential

Working Pressure:

1 Psi

Accuracy:

0.2 %

Output Type:

Analog

Highlight:

26PC01SMT Electronic Pressure Sensor

Electronic Pressure Sensor SMT

Differential Pressure Sensor 26PC

26PC01SMT Board Mount Pressure Sensor Differential Electronic SMT 26PC Series

GENERAL INFORMATION
The 26PC SMT (Surface Mount Technology)
pressure sensor contains a four-element
piezoresistive bridge. When pressure is applied, the
bridge resistance changes and the sensor provides
an output signal proportional to the input pressure.
The 26PC SMT provides a differential voltage
proportional to the pressure differential between
Port P2 and Port P1:
• As the difference in P = P2 – P1 increases,
differential voltage increases.
• As the difference in P = P2 – P1 decreases,
differential voltage decreases.

SPECIFICATIONS

Operating Temperature	-40 °C to 85 °C [-40 °F to 185 °F]
Storage Temperature	-55 °C to 100 °C [-67 °F to 212 °F]
Compensated Temperature	0 °C to 50 °C [32 °F to 122 °F]
Alignment Pins	0,86 mm [0.034 in] diameter pins extend through PCB
Port Diameter	1,88 mm [0.074 in] diameter uses standard 0,59 mm [0.0625 in] ID tubing
Port Orientation	Parallel to PCB (low profile on board)
SMT Solder	• Sn 96.5 Ag 3.5 No Clean Flux • Sn 63 Pb 37 No Clean Flux
SMT Reflow Profile	Max peak temperature of 260 °C [500 °F] for 10 seconds
Shock	Qualification tested to 150 g
Weight	0.5 grams [0.0176 oz]

26PC01SMT Board Mount Pressure Sensor Differential Electronic SMT 26PC Series 0
