Product Details:
|
| Sensitive Area: | 3.6 × 3.6mm | Number Of Pixels: | 1 |
|---|---|---|---|
| Refrigeration And: | Non - Cooled | Encapsulation: | Metal |
| Encapsulation Type: | TO-5 | Reverse Voltage (maximum): | 5V |
| Highlight: | S1336-44BQ,Pin Avalanche Photodiode |
||
Product Description:

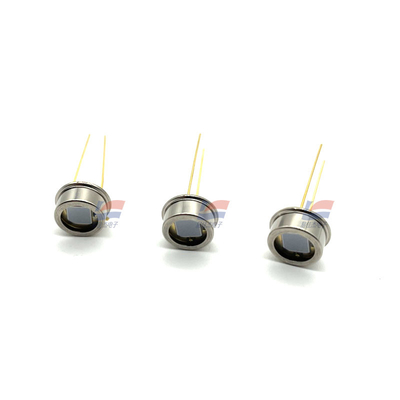

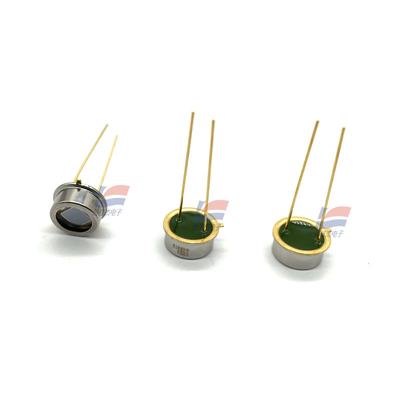

S1336-44BQ Silicon Photodiode Pin Low capacitance UV To NIR For Precision Photometry
Features:
High sensitivity in the ULTRAVIOLET band
Low capacitance
High reliability
Specifications:
| The spectral response range is | 190 to 1100 nm |
| Peak sensitivity wavelength (typical value) | 960 nm |
| Sensitivity (typical value) | 0.5A/W |
| Dark current (Max.) | 50 pA |
| Rise time (typical value.) | 0.5 mu s |
| Junction capacitance (typical value) | 150 pF |
Spectral response:
