S9706 Digital RGB Three Color Sensor 12 Bit Digital Output Low Voltage Plastic

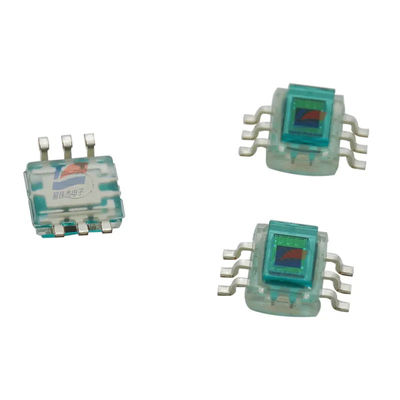

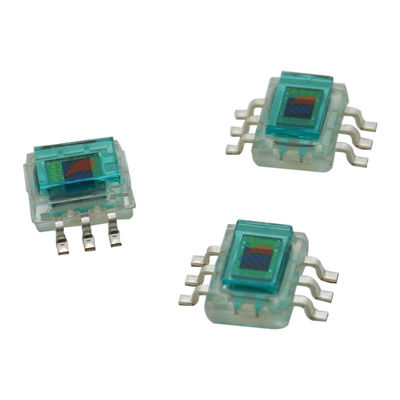

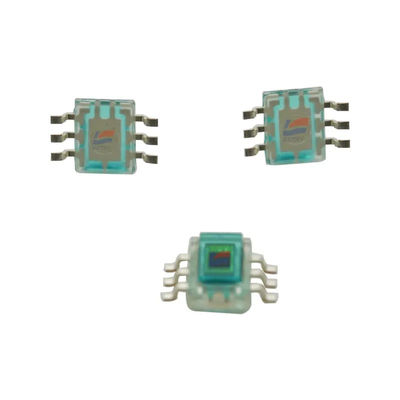

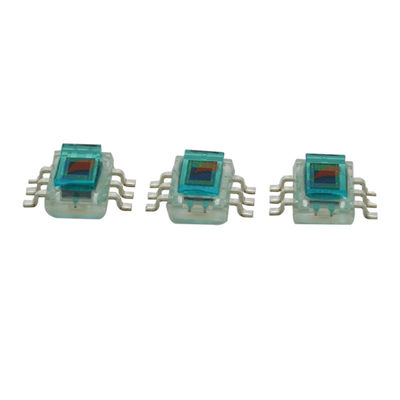

Large Image : S9706 Digital RGB Three Color Sensor 12 Bit Digital Output Low Voltage Plastic

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S9706

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Tube
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

S9706 Digital RGB Three Color Sensor 12 Bit Digital Output Low Voltage Plastic

Description

Packaging:	Plastic	Encapsulation Type:	Surface Mount Type
Package Size:	4.0 X 4.7 X 2.6 Mm	Photographic Area Is:	1.2 X 1.2mm
Spectral Response Range (blue):	400 To 540 Nm	Spectral Response Range (green):	480 To 600 Nm
Spectral Response Range (red):	590 To 720 Nm	Operating Temperature:	-25 To +85 Degrees Celsius
Highlight:	S9706 Digital Color Sensor , Digital Color Sensor 0.21 LSB/lx , RGB Color Sensor

Product Description:

S9706 Digital RGB Three Color Sensor 12 Bit Digital Output Low Voltage Plastic

12-bit digital output
The S9706 is a digital color sensor sensitive to red (λ=615 nm), green (λ=540 nm),blue(λ=465 nm) regions of the spectrum. Detected signals are serially output as 12-bit digital data. Built-in three 12-bit registers allow simultaneous measurement of RGB three colors. Sensitivity level is adjustable in two steps to cover a wide photometric range.

Features
-12-bit digital output
-Simultaneous measurement of RGB three colors
-2-step sensitivity switching (sensitivity ratio of 1:9)
-Low voltage (3.3V) operation
-CMOS monolithic photo IC
-No external components required

Specifications:

Spectral response range (green)	480 to 600 nm
Spectral response range (red)	590 to 720 nm
Peak sensitivity wavelength (blue)	465 nm
Peak sensitivity wavelength (green)	540 nm
Peak sensitivity wavelength (red)	615 nm

S9706 Digital RGB Three Color Sensor 12 Bit Digital Output Low Voltage Plastic 0
