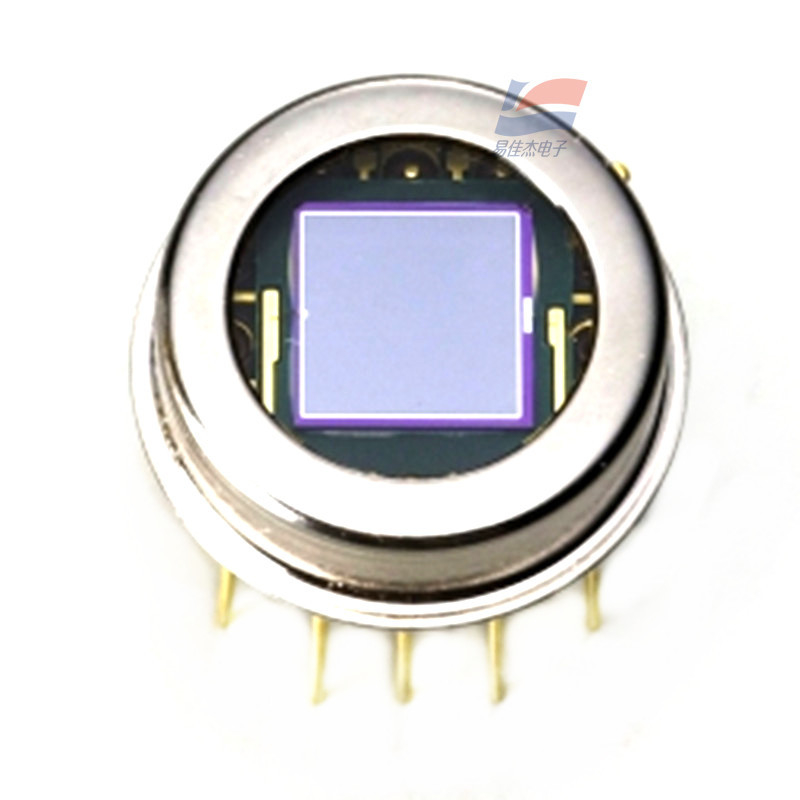

S8746-01 Silicon Pin Photodiode Preamplifiers Infrared Photoelectric Sensor Integrated Resistor

Product Description:

S8746-01 Silicon Pin Photodiode Preamplifiers Infrared Photoelectric Sensor Integrated Resistor

Features:

A photodiode with integrated feedback resistors and capacitors for preamplifiers

S8746-01 is a low-noise sensor composed of photodiodes, operational amplifiers, feedback resistors and capacitors, all packaged in a very small package. When connected to a power source, it can be used for weak light measurements, such as analysis devices or measuring devices. Its light sensitive surface is connected to the GND end, so that it can suppress EMC noise very high.

Product features

● Suitable for precise photometric determination from ultraviolet to near infrared

● Small metal package with quartz window: TO-8

● Photosensitive area: 5.8×5.8 mm

● Built-in Rf=1 Gω Cf=5 pF

● Low power FET input op-amp

Low noise, low NEP

● External resistance to achieve variable gain

● Package with shielding function

● EMC noise resistance

Specifications:
